SHIN YO 5 3/4 inch headlight Bates Style
(60,96 €) 317,36 L
Produsul nu este disponibil momentan; vă vom informa prin e-mail.
Ne amintim de dumneavoastră
Vă rugăm să introduceți adresa dvs. de e-mail pentru a vă putea informa imediat ce articolul va fi din nou disponibil în mărimea dorită.
Descriere

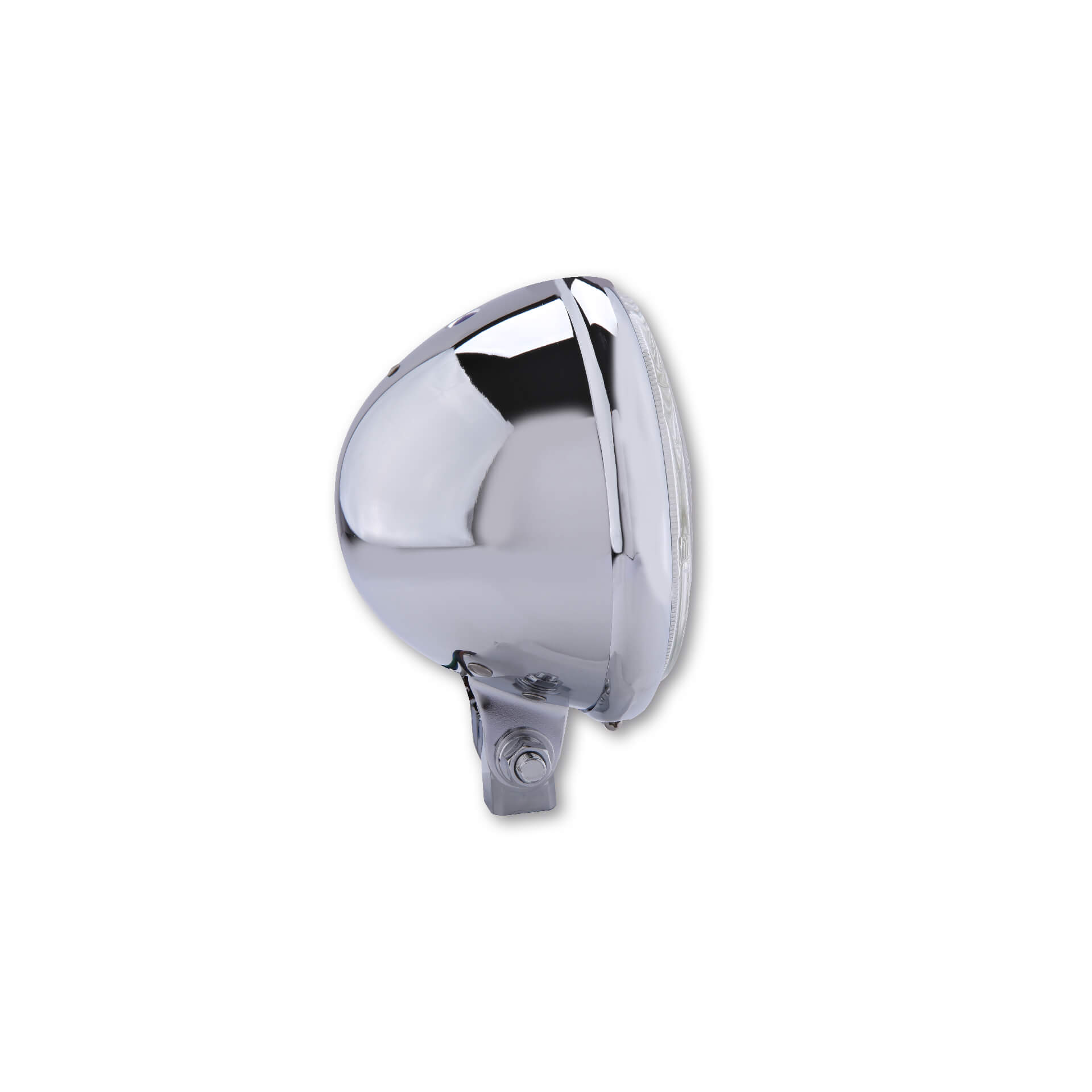

SHIN YO 5 3/4 inch headlight Bates Style, chrome
The popular main headlight with a small, practical blue indicator light for high beam at the top of the housing and its classic style in hemisphere shape makes the headlight the perfect part for all conversion projects. The tested headlamp is also robust and easy to install.
Technical data:
- Metal housing
- Embossed glass
- H4 insert with parking light
- Insert: asymmetrical
- Mounting point: bottom
- Generous opening for cable: bottom
Dimensions:
Diameter front: approx. 155 mm
Depth: 90 mm, with ring approx. 92 mm
Bag hole diameter: 8.8 mm
Bag hole depth: 10 mm
Screw: 9.4 x 20 mm
Thread: 24G 3/16, 7/32
Height mounting block to ring: approx. 27 mm
Height mounting block: approx. 30 mm
Width/depth mounting block: approx. 22 mm
Height mounting with block, center/center: approx. 39 mm

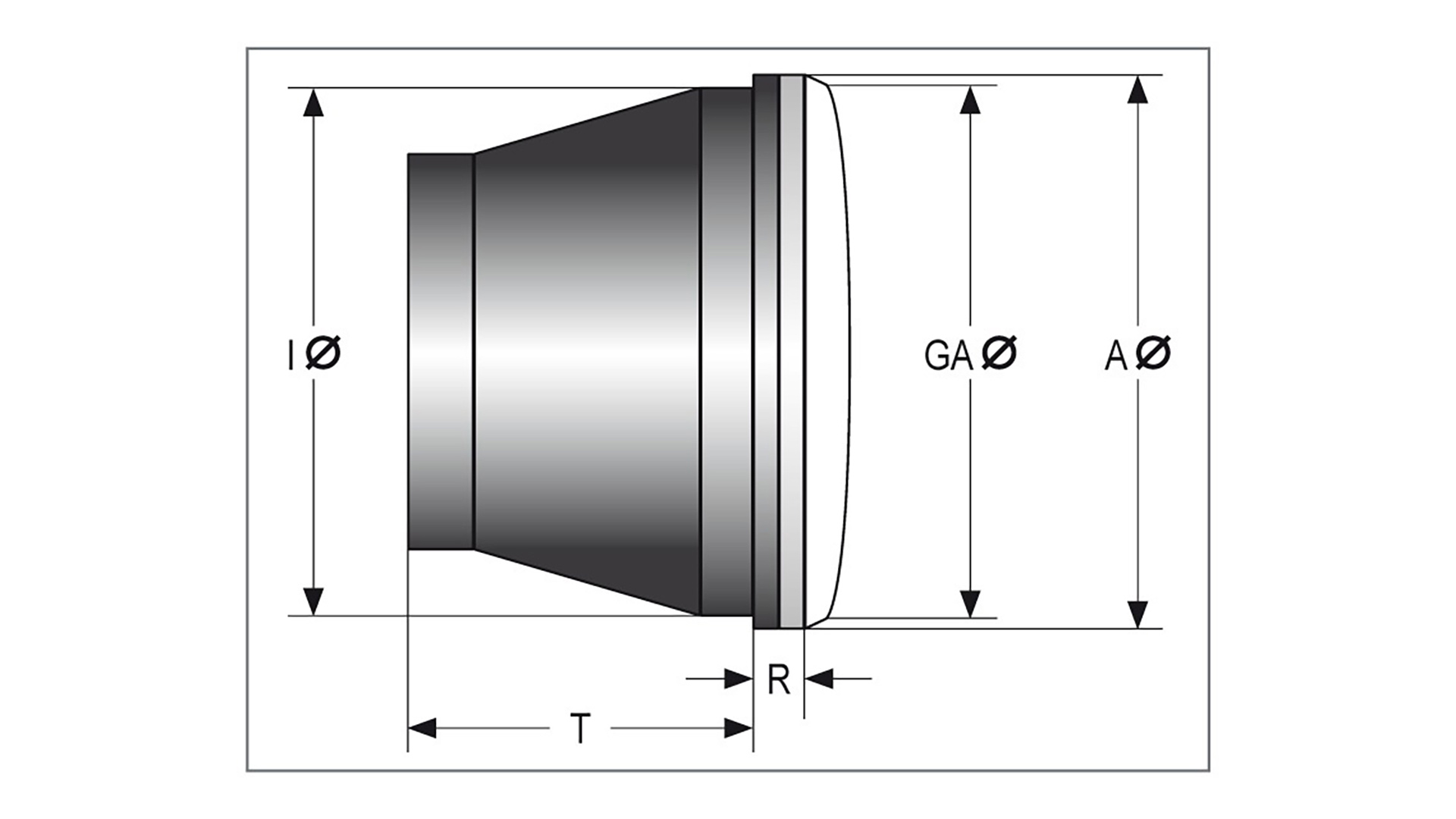

Diameter A = 155 mm
Diameter GA = 133 mm
Diameter I = 145 mm
T = 90 mm
R = 21 mm
Scope of supply: 1 piece
Note:
H4 illuminant please order separately.
The popular main headlight with a small, practical blue indicator light for high beam at the top of the housing and its classic style in hemisphere shape makes the headlight the perfect part for all conversion projects. The tested headlamp is also robust and easy to install.
Technical data:
- Metal housing
- Embossed glass
- H4 insert with parking light
- Insert: asymmetrical
- Mounting point: bottom
- Generous opening for cable: bottom
Dimensions:
Diameter front: approx. 155 mm
Depth: 90 mm, with ring approx. 92 mm
Bag hole diameter: 8.8 mm
Bag hole depth: 10 mm
Screw: 9.4 x 20 mm
Thread: 24G 3/16, 7/32
Height mounting block to ring: approx. 27 mm
Height mounting block: approx. 30 mm
Width/depth mounting block: approx. 22 mm
Height mounting with block, center/center: approx. 39 mm
Diameter A = 155 mm
Diameter GA = 133 mm
Diameter I = 145 mm
T = 90 mm
R = 21 mm
Scope of supply: 1 piece
Note:
H4 illuminant please order separately.
| Introducere montaj: | Descărcați |
| Culoare: | Chrome |
|---|---|
| Diametru: | 146.00 |
| Sticlă: | Embosat |
