SHIN YO 5 3/4 inch headlight Bates Style
(66,04 €) 343,81 L
VERIFICAȚI DISPONIBILITATEA MAGAZINULUI
Disponibilitatea magazinului
Ridicați produsul astăzi
Disponibil exclusiv pentru dumneavoastră timp de două zile
Testați în liniște produsul înainte de a-l cumpăra
Comandați produsul online și ridicați-l din magazin
FC-Moto Store
Aachener Str. 21-23
52146 Würselen
Program de lucru
Luni-Vineri 10.00 - 19.00
Sâmbătă 10.00 - 18.00
Ne amintim de dumneavoastră
Vă rugăm să introduceți adresa dvs. de e-mail pentru a vă putea informa imediat ce articolul va fi din nou disponibil în mărimea dorită.
Descriere

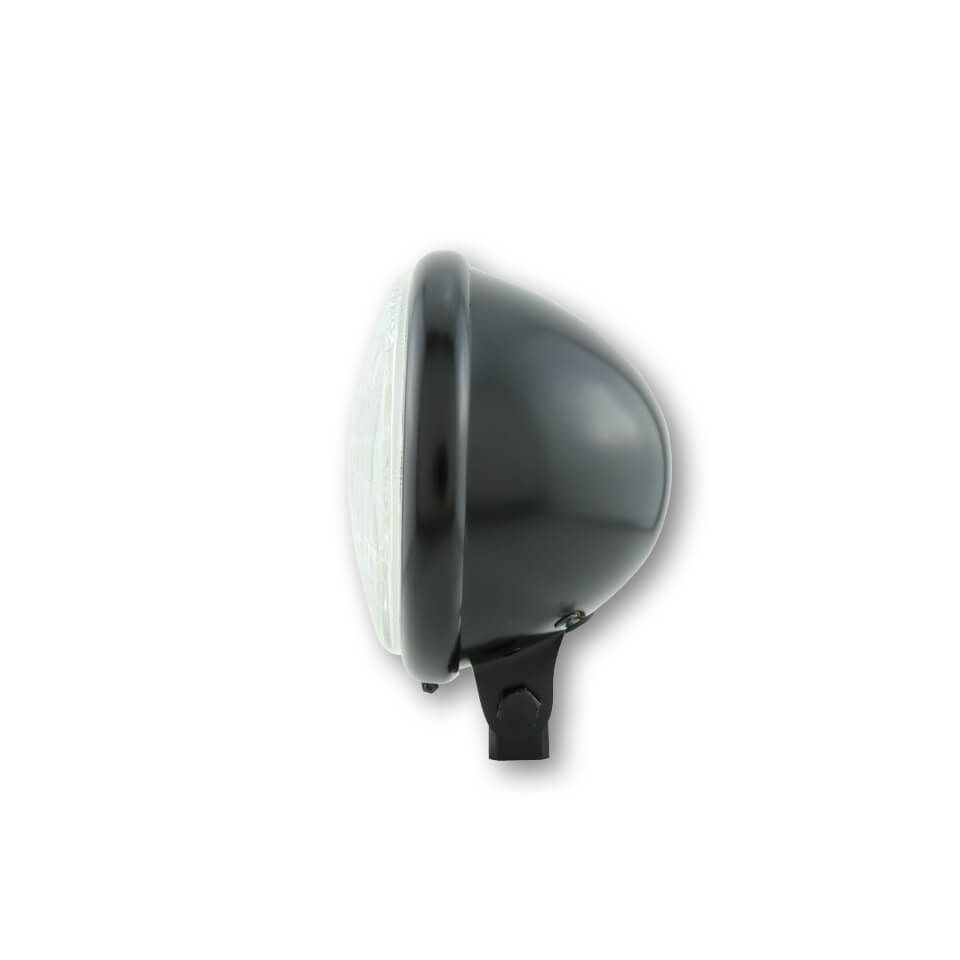

SHIN YO 5 3/4 inch headlight Bates Style, black satin
The popular main headlight with its classic style in hemisphere shape makes the headlight the perfect part for all conversion projects. The tested headlamp is also robust and easy to install.
Technical data:
- Metal housing
- Embossed glass
- H4 insert with parking light
- H4 12V 60/55W
- Mounting point: bottom
Dimensions:
Diameter front: approx. 155 mm
Depth: 90 mm, with ring approx. 92 mm
Sunk hole diameter: 8.8 mm
Sunk hole depth: 10 mm
Screw: 9.4 x 20 mm
Thread: 24G 3/16, 7/32
Height mounting block to ring: approx. 27 mm
Height mounting block: approx. 30 mm
Width/depth mounting block: approx. 22 mm
Height mounting with block, center/center: approx. 39 mm

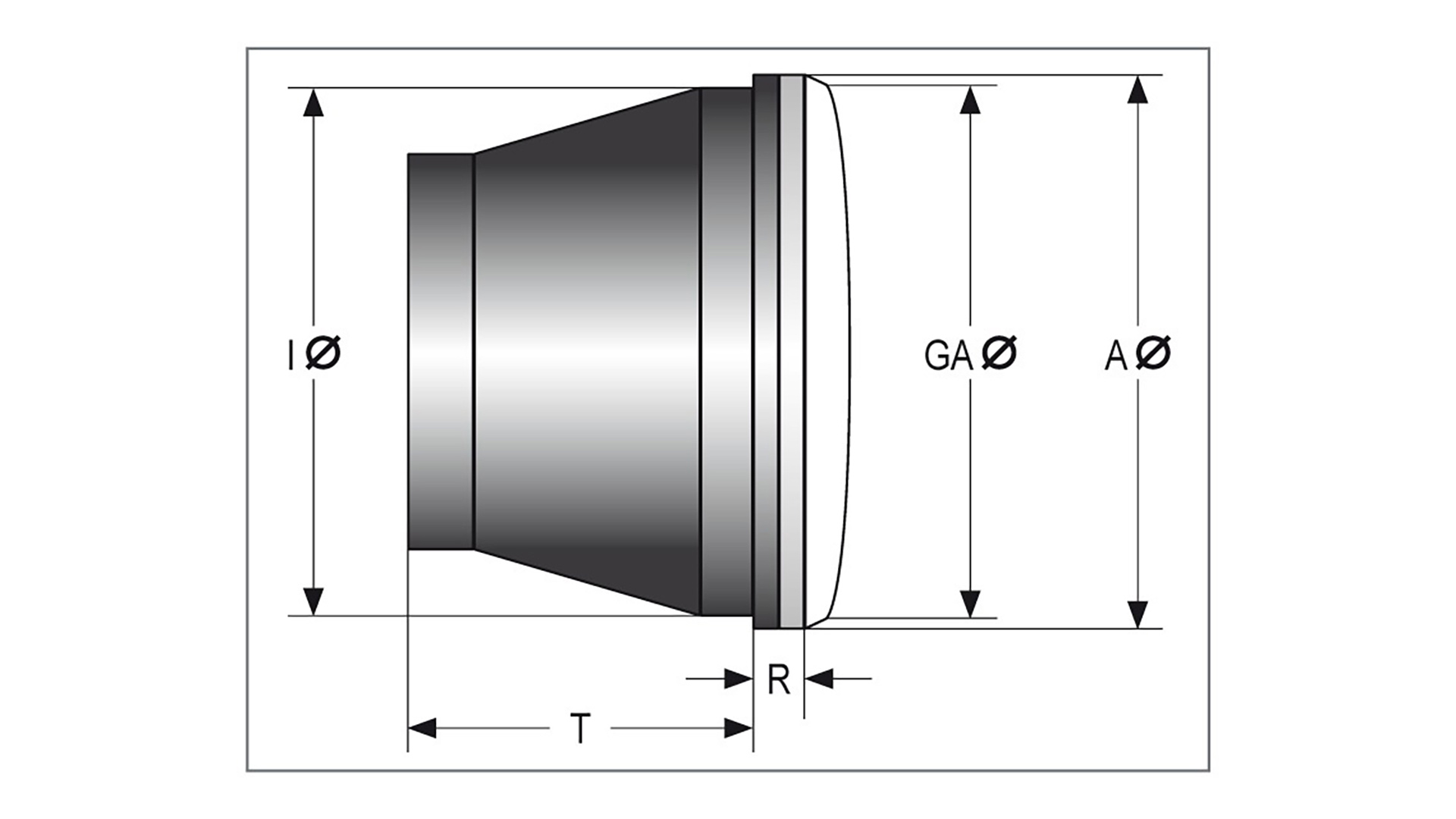

Diameter A = 153 mm
Diameter GA = 133 mm
Diameter I = 145 mm
T = 75 mm
R = 20 mm
Scope of delivery: 1 piece
The popular main headlight with its classic style in hemisphere shape makes the headlight the perfect part for all conversion projects. The tested headlamp is also robust and easy to install.
Technical data:
- Metal housing
- Embossed glass
- H4 insert with parking light
- H4 12V 60/55W
- Mounting point: bottom
Dimensions:
Diameter front: approx. 155 mm
Depth: 90 mm, with ring approx. 92 mm
Sunk hole diameter: 8.8 mm
Sunk hole depth: 10 mm
Screw: 9.4 x 20 mm
Thread: 24G 3/16, 7/32
Height mounting block to ring: approx. 27 mm
Height mounting block: approx. 30 mm
Width/depth mounting block: approx. 22 mm
Height mounting with block, center/center: approx. 39 mm
Diameter A = 153 mm
Diameter GA = 133 mm
Diameter I = 145 mm
T = 75 mm
R = 20 mm
Scope of delivery: 1 piece
| Introducere montaj: | Descărcați |
| Culoare: | Black matt |
|---|---|
| Diametru: | 146.00 |
| Sticlă: | Embosat |
