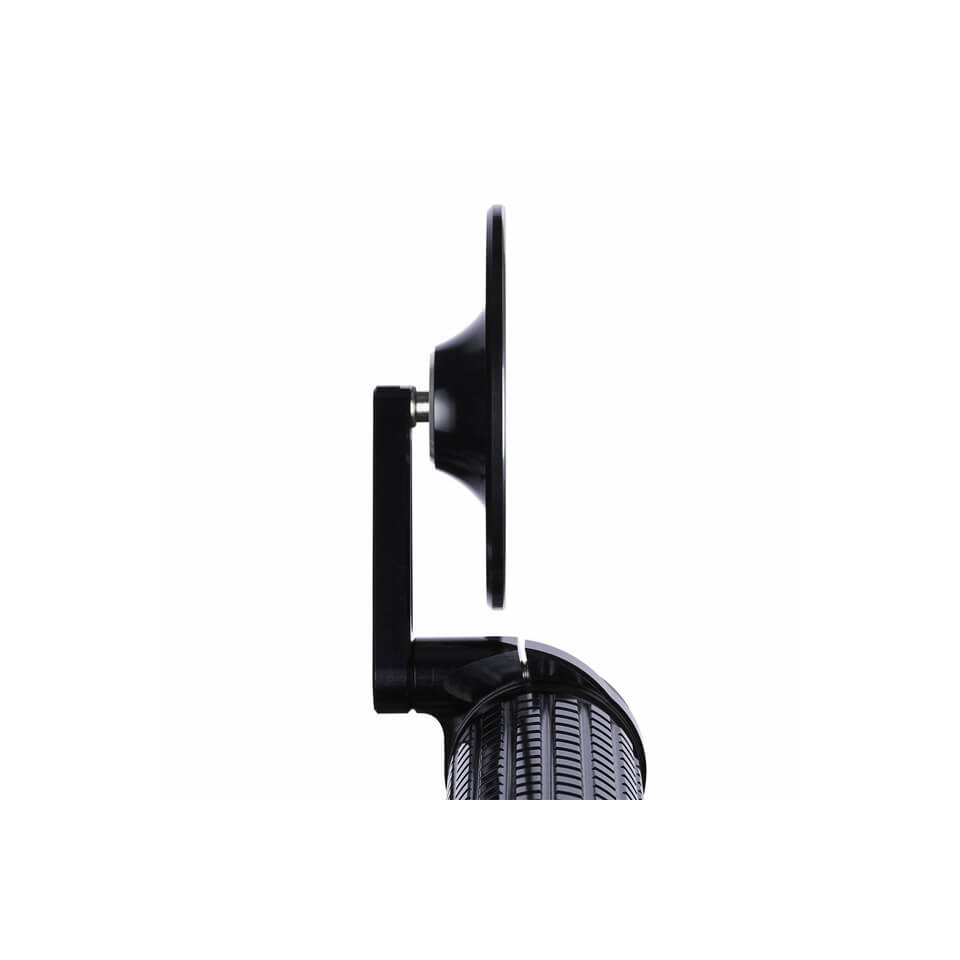

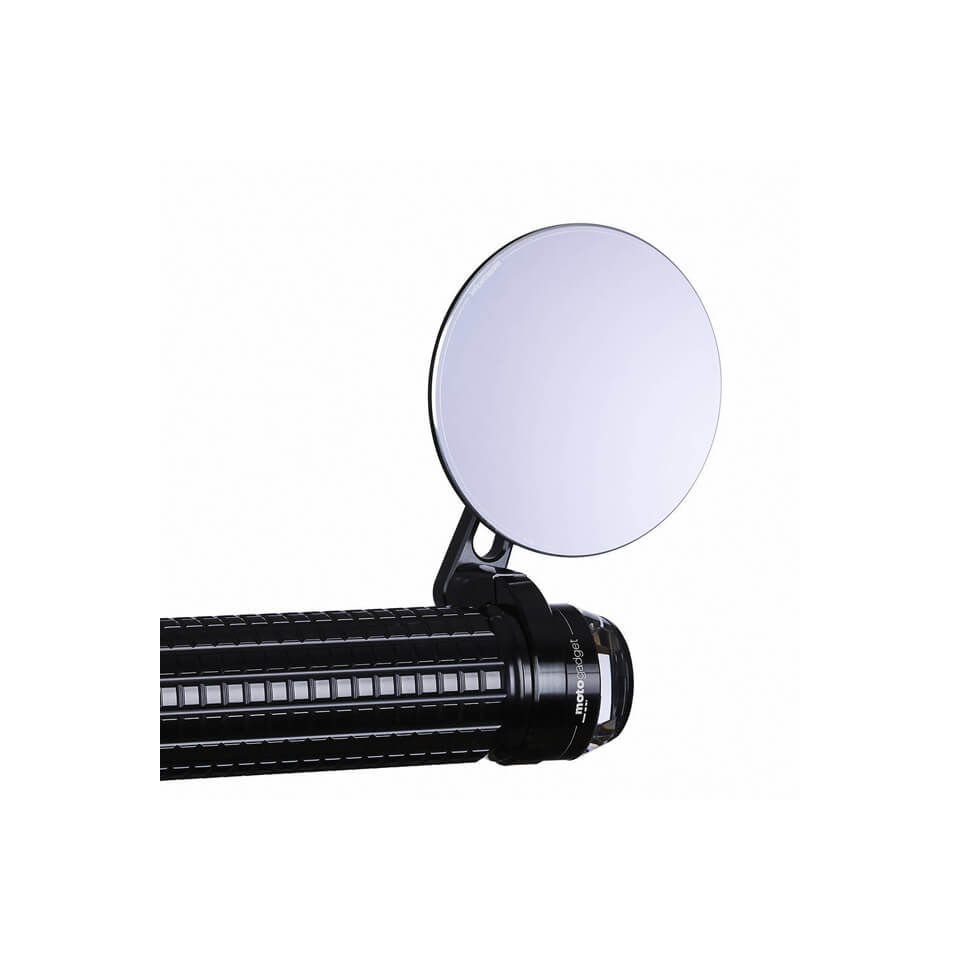

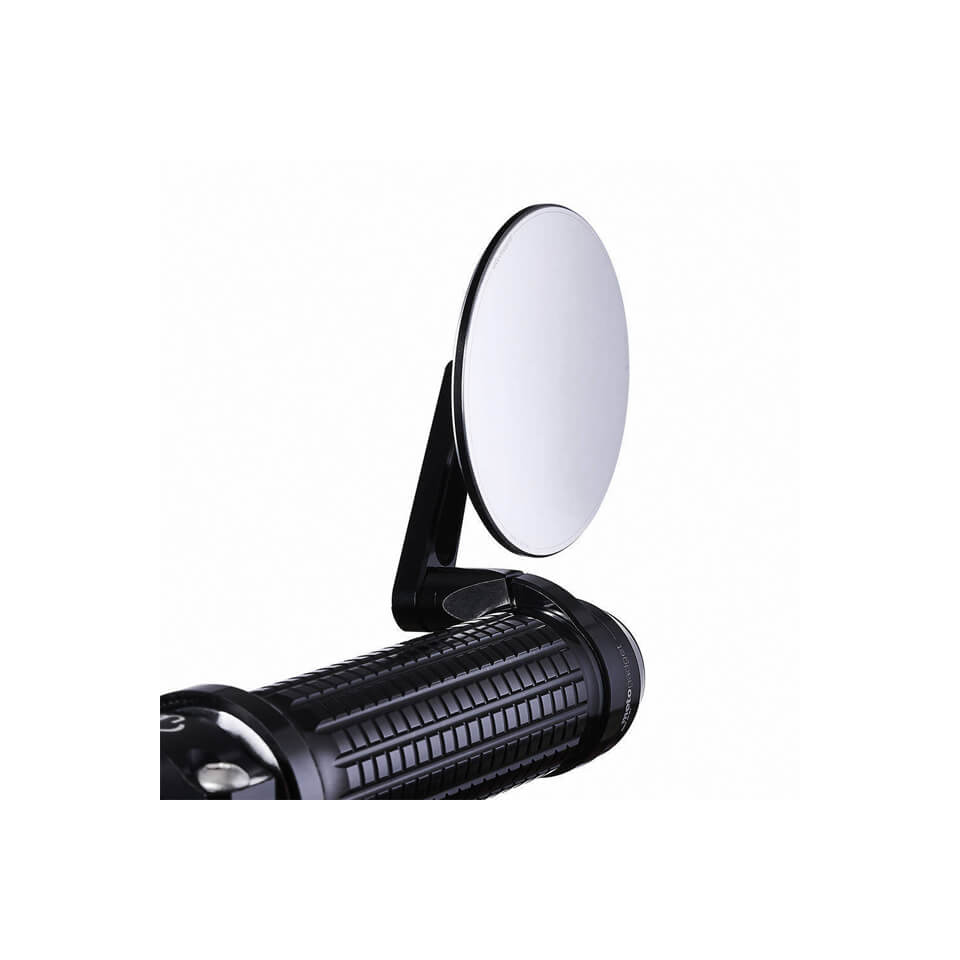

motogadget mo.view spy

motogadget now exclusively presents its glassless mirror series mo.view.
The special feature of this motorcycle mirror is the patented mirror surface, which is incorporated directly into the metal of the body.
The aluminum itself is the mirror surface!
This enables a weightless design without a rim and frame and the mirror body itself is very thin and light.
Broken glass or glass that has fallen out is simply not possible!

The convex mirror surface is produced by flycutting using diamond tools on ultra-precision machines.
After this, it is made resistant to oxidation, corrosion and scratches by means of an elaborate plasma coating in a vacuum.

The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminium on CNC machines and anodized to a high quality.
All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably.

The handlebar end mirror mo.view spy is very small, reduced and fits perfectly with our handlebar end indicators and the mo.grip grips as well as the mo.switch and mo.switch mini push-button fittings.
It can be mounted above or below the handlebars. The mirror is suitable for the right and left side.
Mounted directly on the handlebar end (22 mm and 1 inch).

Important information: These mirrors can be used universally for numerous vehicle types.
As these mirrors do not have an E-mark (EG-BE), they are therefore not approved for use in road traffic within the scope of the German StVZO.
The assembly and use may only take place for racing, competition or show purposes.

Dimensions:
Diameter of mirror body: 75 mm
Thickness of mirror body without ball head: 4 mm
Length of mirror arm: 61 mm
Diameter of clamp: suitable for 22 mm and 1 inch handlebars
Width of clamp: 8 mm

Scope of delivery
Mo.view spy rear-view mirror with arm and clamp, instructions
