Descriere
HIGHSIDER M8 mounting kit for div. Kawasaki motorcycles
This special mounting kit makes it possible to mount the popular HIGHSIDER handlebar end weights, handlebar end mirrors or lever guards on the original handlebar of Kawasaki motorcycles.
With a suitable slotted screwdriver, the 8 x 1.25 threaded sleeves with M5 internal thread are screwed into the existing thread in the handlebar.
Fitting to the threaded sleeve with M5 internal thread are included M5 x 30 mm screws.
The M6 bolts used on the HIGHSIDER handlebar end weights, handlebar end mirrors and lever guards are replaced with the M5 bolts
Now the HIGHSIDER handlebar accessories can be mounted on the Kawasaki handlebar.
In order to create a sufficiently large distance between the handle and the attachment part, the washers included in the set can be used if necessary.
Tailor-made for your bike - the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality and functionality you can easily design your bike according to your wishes.
Dimensions:
Threaded sleeves
Outside: M8 x 1.25
Inside: M5 x 30 mm
Washer:
Outer diameter: 15 mm
Inner diameter: 5.3 mm
Adapter screw: M5 x 30 mm
Distance washer:
Diameter: 28 mm
Thickness: 8 mm
Hole: 5.3 mm

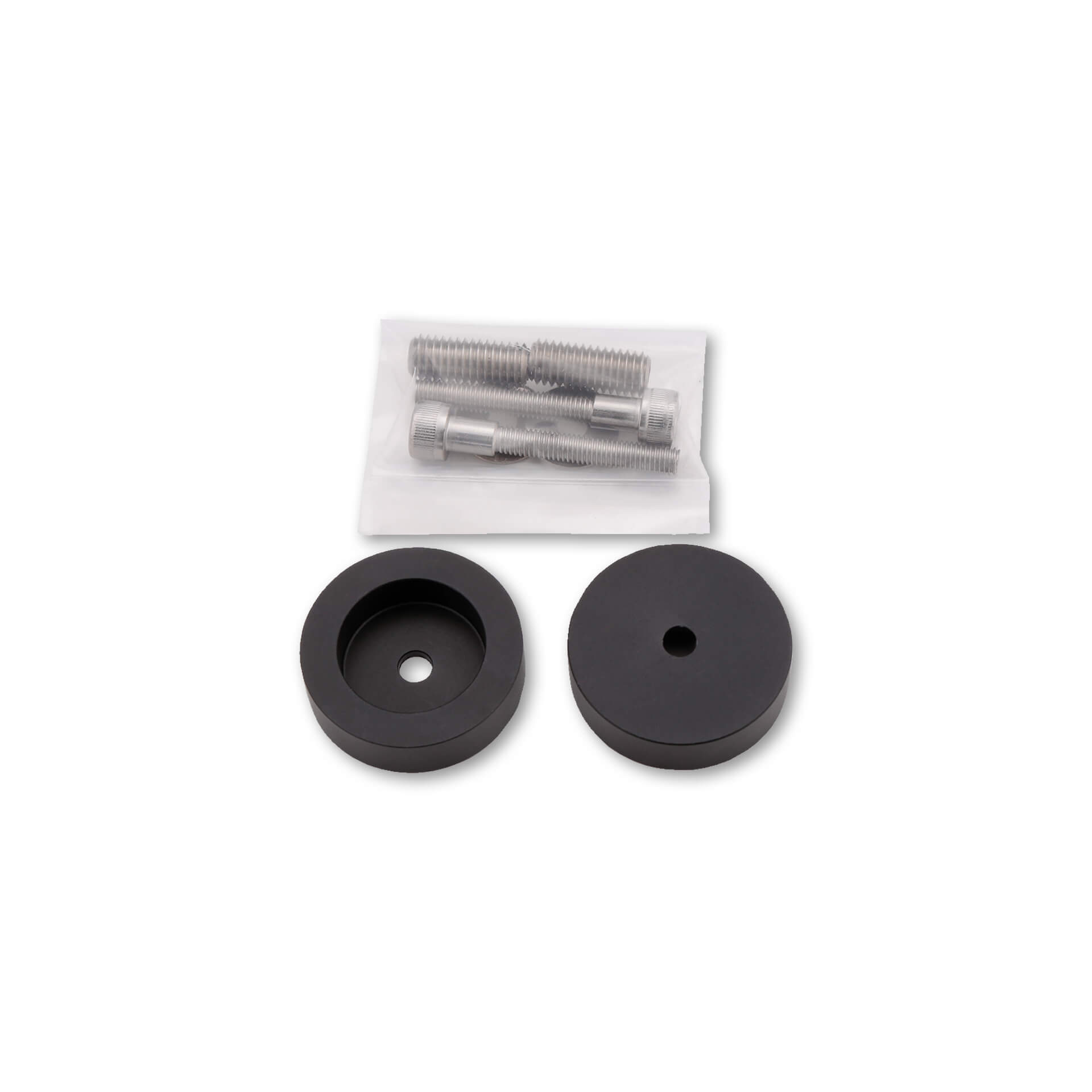

Scope of delivery:
2 x threaded sleeves
2 x washers
2 x M5 screws
2 x spacers
Note:
Not suitable for handlebar end mirrors with LED turn signals.
This special mounting kit makes it possible to mount the popular HIGHSIDER handlebar end weights, handlebar end mirrors or lever guards on the original handlebar of Kawasaki motorcycles.
With a suitable slotted screwdriver, the 8 x 1.25 threaded sleeves with M5 internal thread are screwed into the existing thread in the handlebar.
Fitting to the threaded sleeve with M5 internal thread are included M5 x 30 mm screws.
The M6 bolts used on the HIGHSIDER handlebar end weights, handlebar end mirrors and lever guards are replaced with the M5 bolts
Now the HIGHSIDER handlebar accessories can be mounted on the Kawasaki handlebar.
In order to create a sufficiently large distance between the handle and the attachment part, the washers included in the set can be used if necessary.
Tailor-made for your bike - the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality and functionality you can easily design your bike according to your wishes.
Dimensions:
Threaded sleeves
Outside: M8 x 1.25
Inside: M5 x 30 mm
Washer:
Outer diameter: 15 mm
Inner diameter: 5.3 mm
Adapter screw: M5 x 30 mm
Distance washer:
Diameter: 28 mm
Thickness: 8 mm
Hole: 5.3 mm
Scope of delivery:
2 x threaded sleeves
2 x washers
2 x M5 screws
2 x spacers
Note:
Not suitable for handlebar end mirrors with LED turn signals.
