HIGHSIDER APOLLO module LED turn signal

HIGHSIDER APOLLO MODUL LED turn signal, E-approved for front and rear

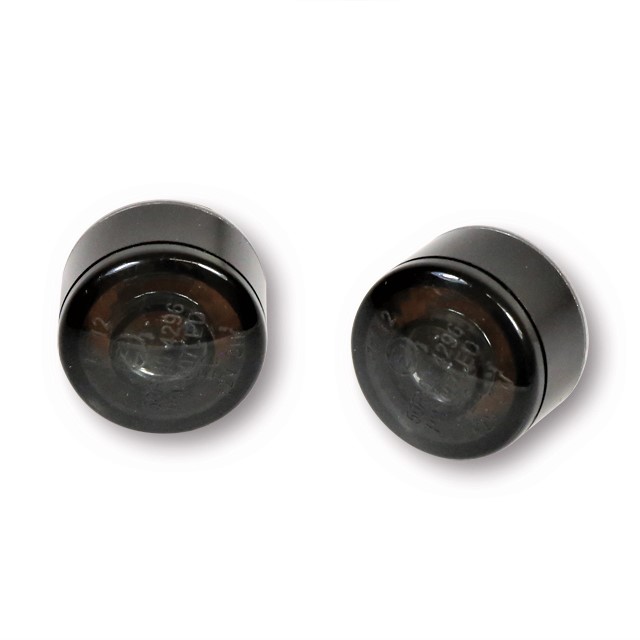

LED turn signal module suitable for mounting or fitting, black aluminium ring with tinted glass. With this innovative lighting technology, 2 very bright SMD LEDs are installed in the centre, enabling an extremely small design. The outer ring, on the other hand, consists of the new COB technology (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs. This module comes with a black anodized aluminum ring that fits over the base body.

In the right direction - with the innovative turn signal series from HIGHSIDER. Don't just show where you're going, show who you are. This is trend-setting design at its best.

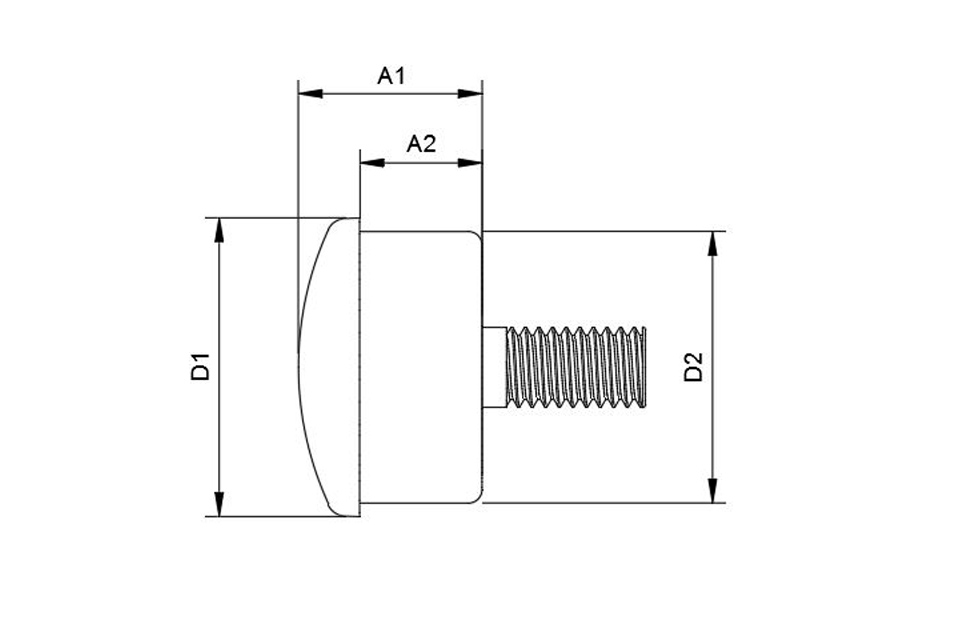

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm
Thread bolt: M8, length: 12 mm

Connections:
Black wire = ground (-)
Yellow wire = turn signal (+)

Scope of supply: 1 pair

Note:
The unit can be installed flat without the aluminium ring, so that only the lens is visible. A 20 mm hole must be drilled for this purpose.
Alternatively, the unit can be mounted with the aluminium ring on e.g. a retaining plate on the vehicle, see instructions.
