HIGHSIDER APOLLO module LED taillight, brake light, turn signal

HIGHSIDER APOLLO MODUL 3in1 LED rear, brake light, turn signal, E-approved for rear

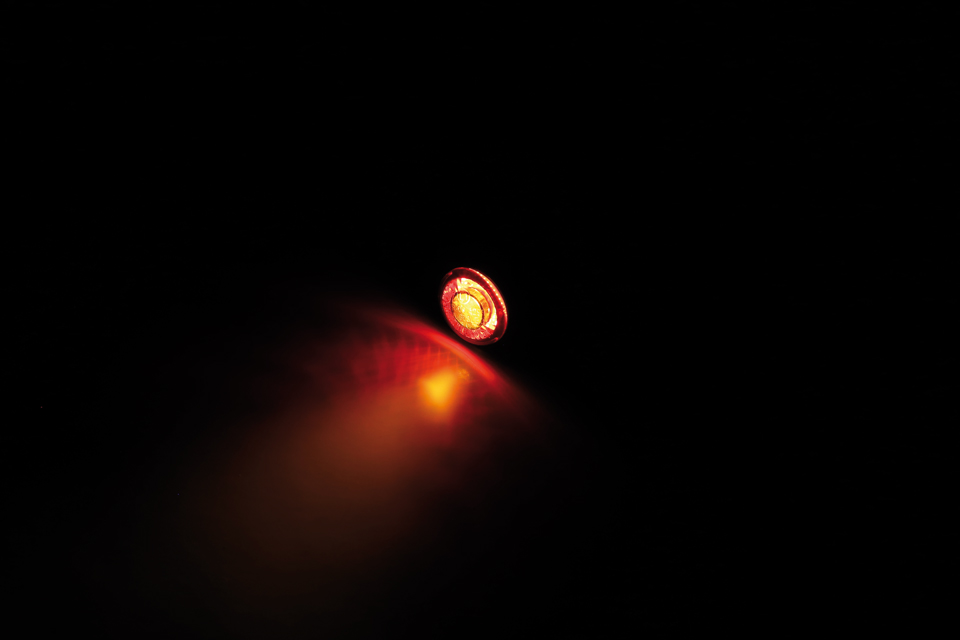

LED rear, brake light, turn signal module suitable for mounting or fitting, black aluminium ring with tinted glass. In the center 2 very bright SMD are installed. The outer ring consists of COBs (Chip On Board). In this technique, the semiconductor (without a package) is bonded directly to a printed circuit board. This module comes with a black anodized aluminum ring that fits over the base body.

The best is saved for last - the tail light and taillight/turn signal series from HIGHSIDER give you the safety you need and the look you want - whether cruiser, sportsman or speedster.

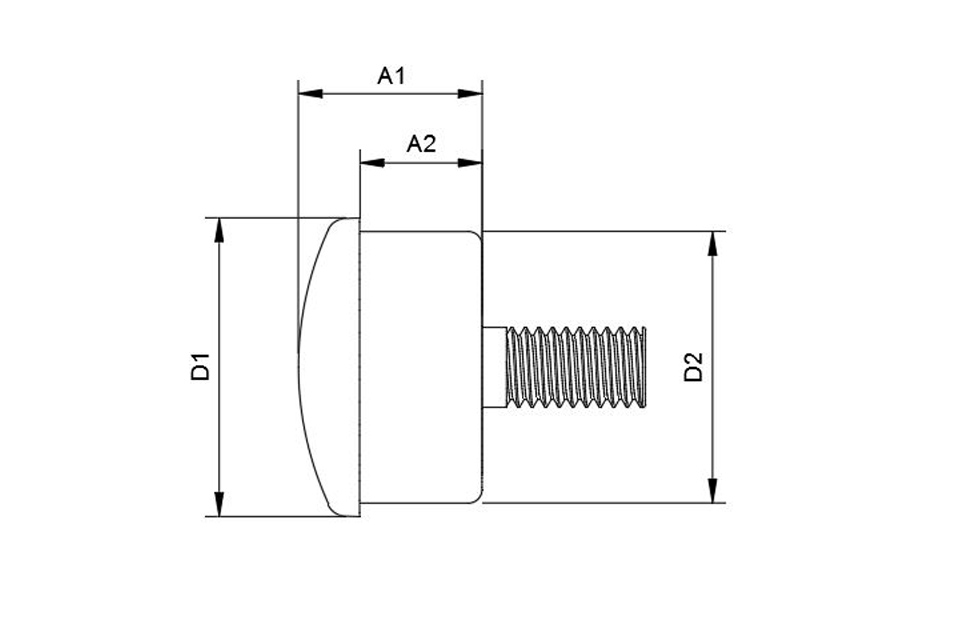

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm
Thread bolt: M8, length 12 mm

Connections:
Black wire = ground (-)
Yellow wire = tail light (+)
Red wire = brake light (+)
Blue = turn signal (+)

Scope of supply: 1 pair

Note:
The unit can be installed flat without the aluminium ring, so that only the lens is visible. For this purpose, a 20 mm wide hole must be drilled. Alternatively, the unit can be mounted with the aluminium ring on e.g. a retaining plate on the vehicle.
