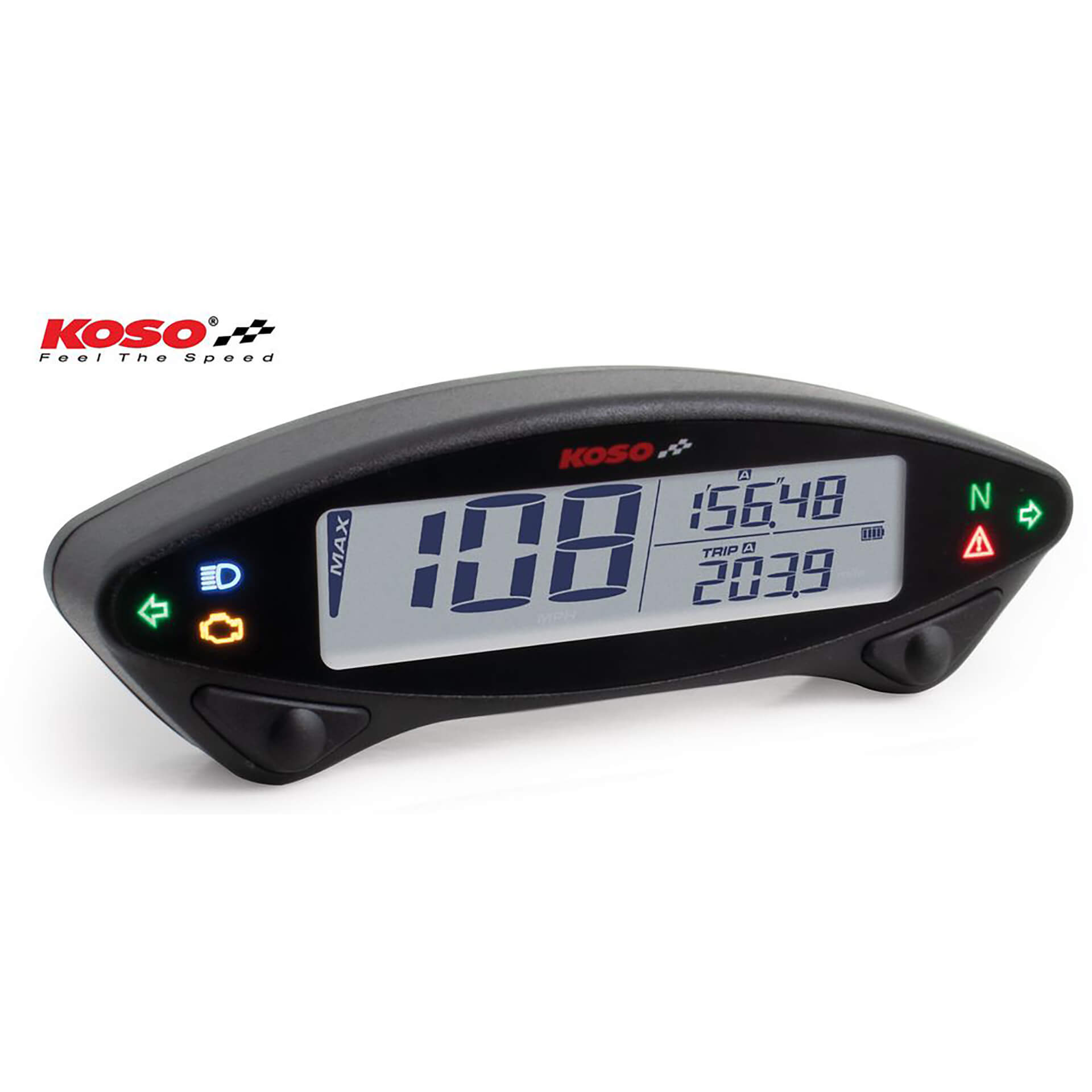

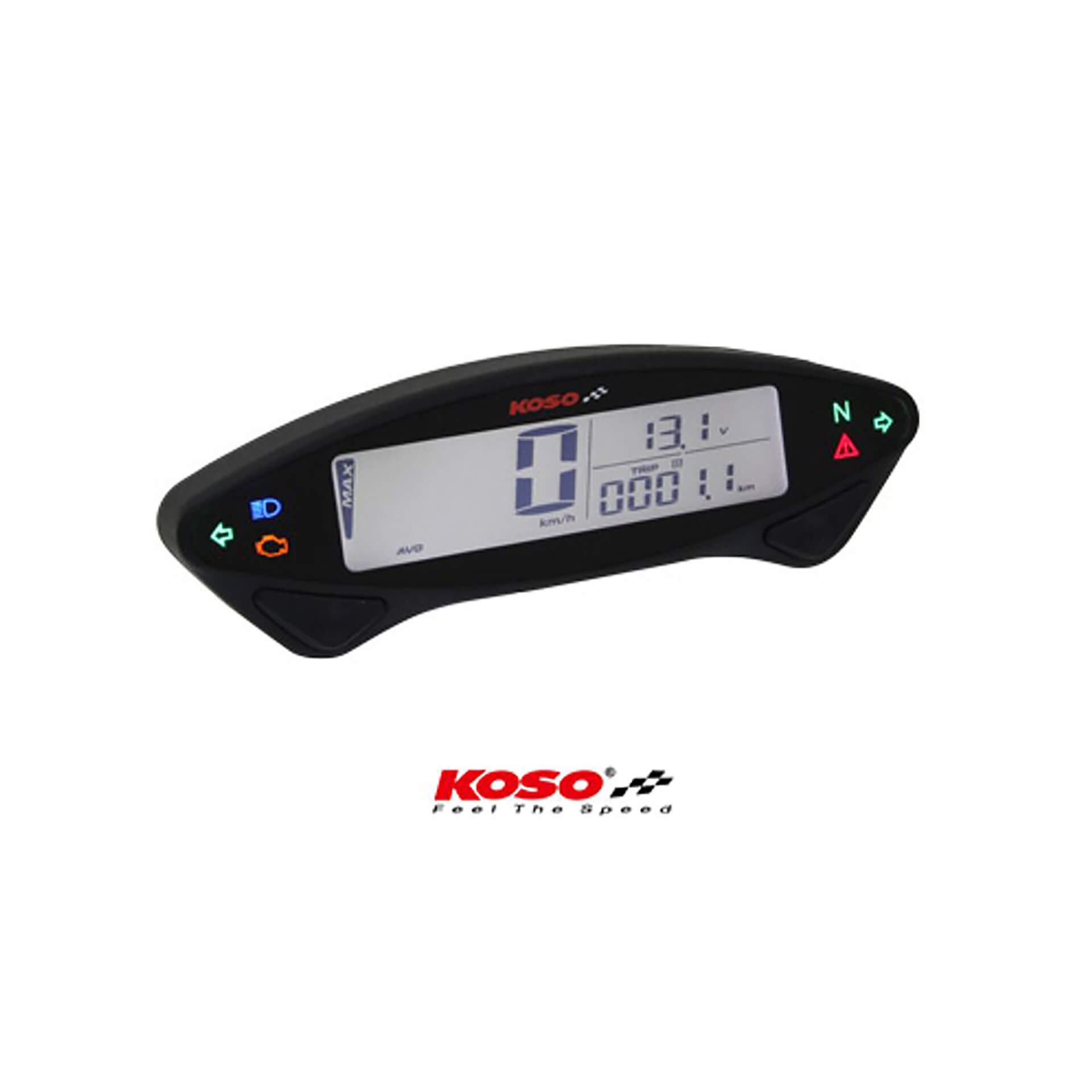

KOSO Digital speedometer, DB EX-02

Digital speedometer black, DB EX-02
A simple, small speedometer with ABE. The right choice if you want a practical and handy instrument.
Thanks to the white backlight (5-fold adjustable intensity) excellent readability.
Additional blinker lights for turn signals right, left warning light for operating status, as well as indicator for high beam and neutral complete the multifunctional instrument.
Display range of speed from 0-360 Km/h, convertible from Km/h or to mph. Trip and total odometer, voltmeter and clock. Signal information selectable, negative or positive.

Speed unit: km/h or mph

Speedometer: Display range: 0 - 360 km/h (0 - 225 mph)

Total odometer: 0 - 99.999 km (miles)

Daily odometer: 0 - 999.9 km (miles)

Tire circumference setting: Setting range: 300 - 2.500 mm

Adjustment unit: 1 mm

Number of sensors: 1 - 60

Operating hour meter: 0~9999.9 hours
automatic reset after 9999.9 hours

Clock: 12 / 24 mode

Voltage meter: 8-18V

Effective temperature range: -10 ~ +60°C

Voltage: DC 12V

Internal battery f. Clock: CR2032


5 display levels of lighting:
indicator (green), high beam (blue), warning light (red), neutral (green), engine light (yellow)

Dimensions (WxDxH): 120x40x40mm

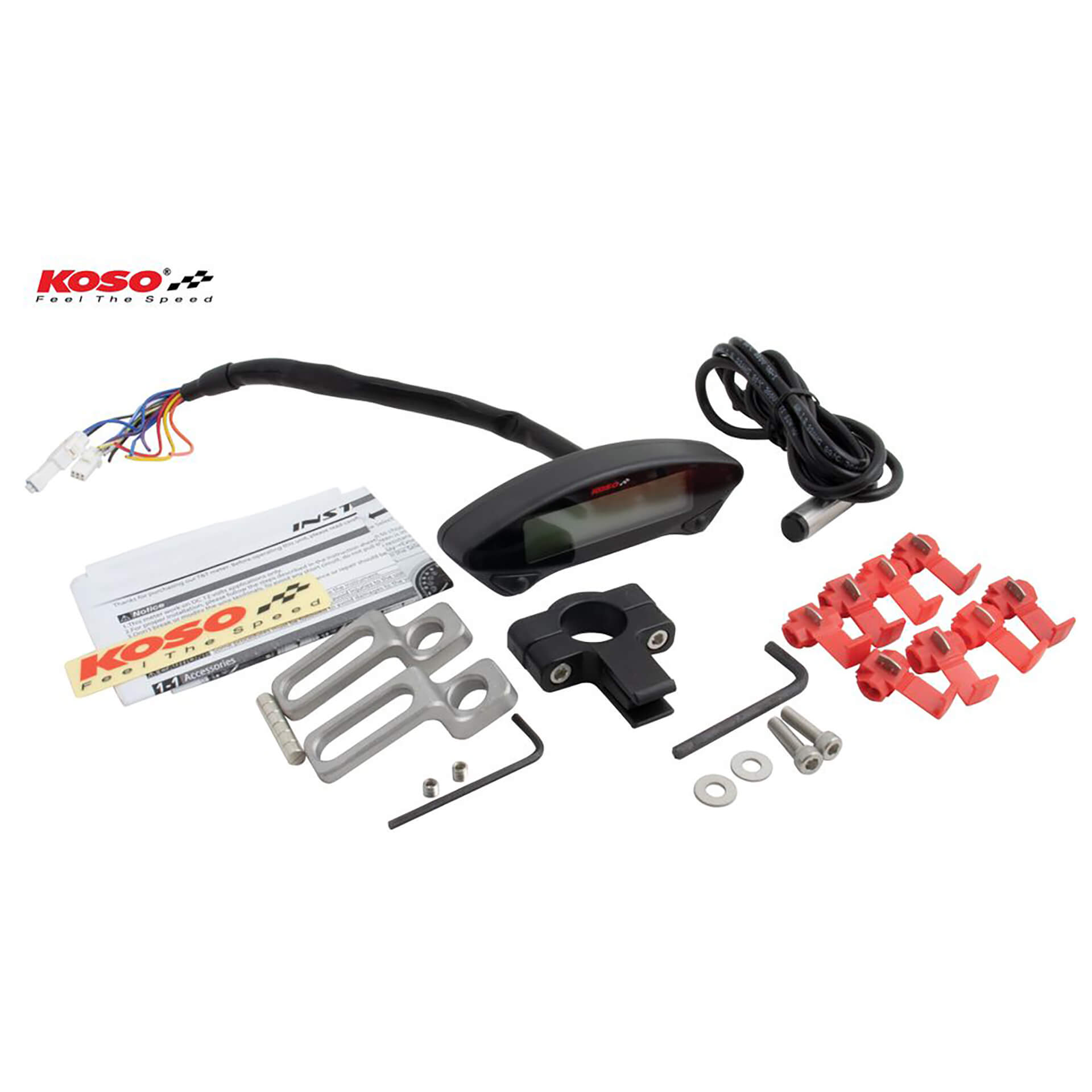

Scope of supply: 1 piece

Note:
ABE not included. The ABE can be printed on the manufacturer's homepage via available downloads.

Introducere montaj:	Descărcați
ABE:	Descărcați
