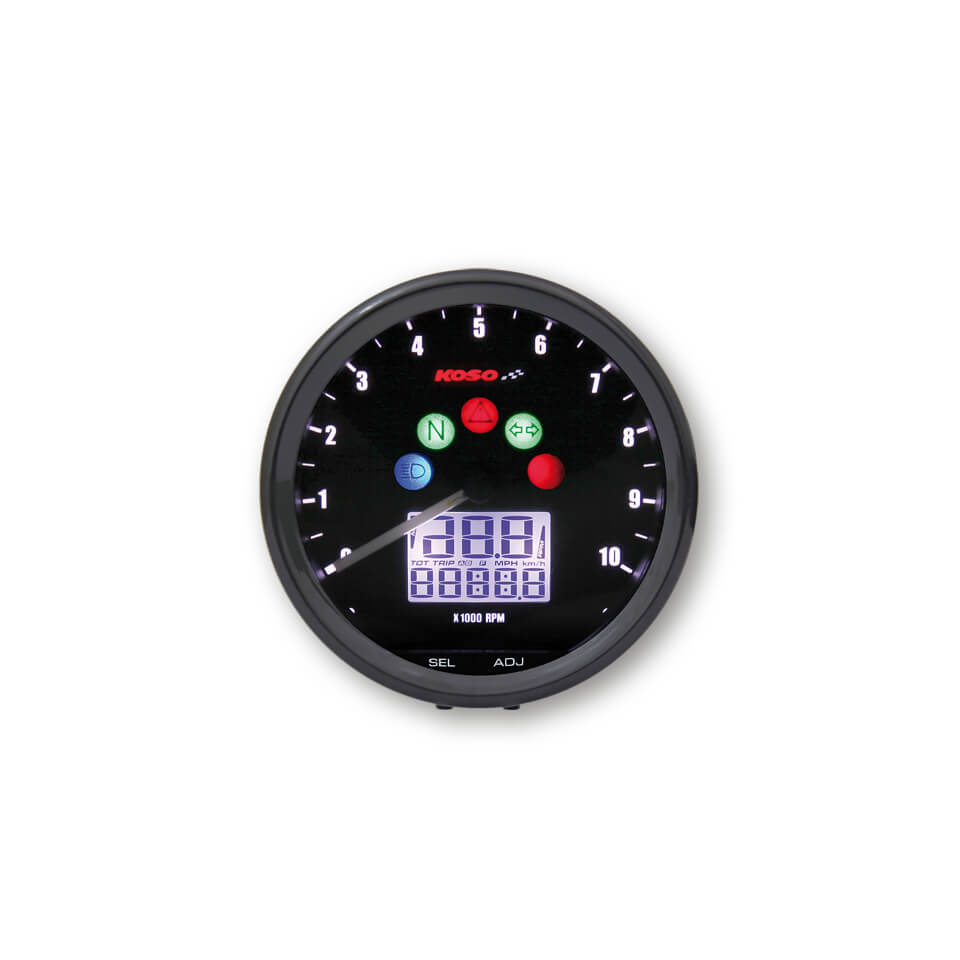

KOSO Digital Multifunctional Cockpit, TNT D64 Custom Style Multimeter, black
The TNT-64 Multifunctional Speedometer is the perfect device for all Café Racers and special projects. The D64 Custom Style uses a stepper motor for a fast and smooth response. The device has many functions such as speed, odometer, trip meter, rpm, fuel gauge, clock, shift flash, pilot light and more. This speedometer is available in black and contains the necessary accessories.
Features:
Tachometer
Display range : 0-360 km/h (0-225MPH)
Display unit : km/h & MPH
Updates: < 0.5 seconds
Odometer
Display range: 0-99999 km (miles)
Reset automatically after 0-99999 km (miles)
Display unit: 1 km (miles)
Trip meter A/B
Display range: 0-999.9 km (miles)
Reset automatically after 0-999.9 km (miles)
Display unit: 0.1 km (miles)
Tire circumference adjustment
Unit: 1 mm
Sensor points: 6
Tachometer: Display range: 0-10,000 rpm
Shift flash
Adjustment range: 8,000-10,000 rpm
Unit: 100 rpm
Warning (switching flash)
Light on (F-OFF)
Flash (F-ON)
Speed signal setting: Setting range: 0.5, 1-24
Rpm Pulse: Setting range
HI-Act (Positive)
Lo-Act (Negative)
Tank level
Display range: 6 levels
Unit: Each level corresponds to 16.6 %
Setting: 100 Ohm, 250 Ohm, 510 Ohm, 1200 Ohm, SW, User
Clock: 24h
Voltmeter
Display range: DC 8-18 V
Flashes when voltage is below 11.5V or higher than 15.5V
br/>Brightness Backlight
Setting: 1-5 (dark to bright)
Unit: Each level corresponds to 20%
effective voltage: DC 12 V
effective temperature range: -10 - 60°C (14 140°F)
standard: JIS D 0203 S2
measurements (W x L x H): 68.33 x 64.55 x 54.03 mm
weight :±127.3 g
Lighting of the function lights
Turn signal (green)
Warning light (red)
Neutral (green)
High beam (blue)
Sensor supplied: Passive speed sensor: BF019005
Supplied with: 1 piece incl. detailed English instructions
