Descriere

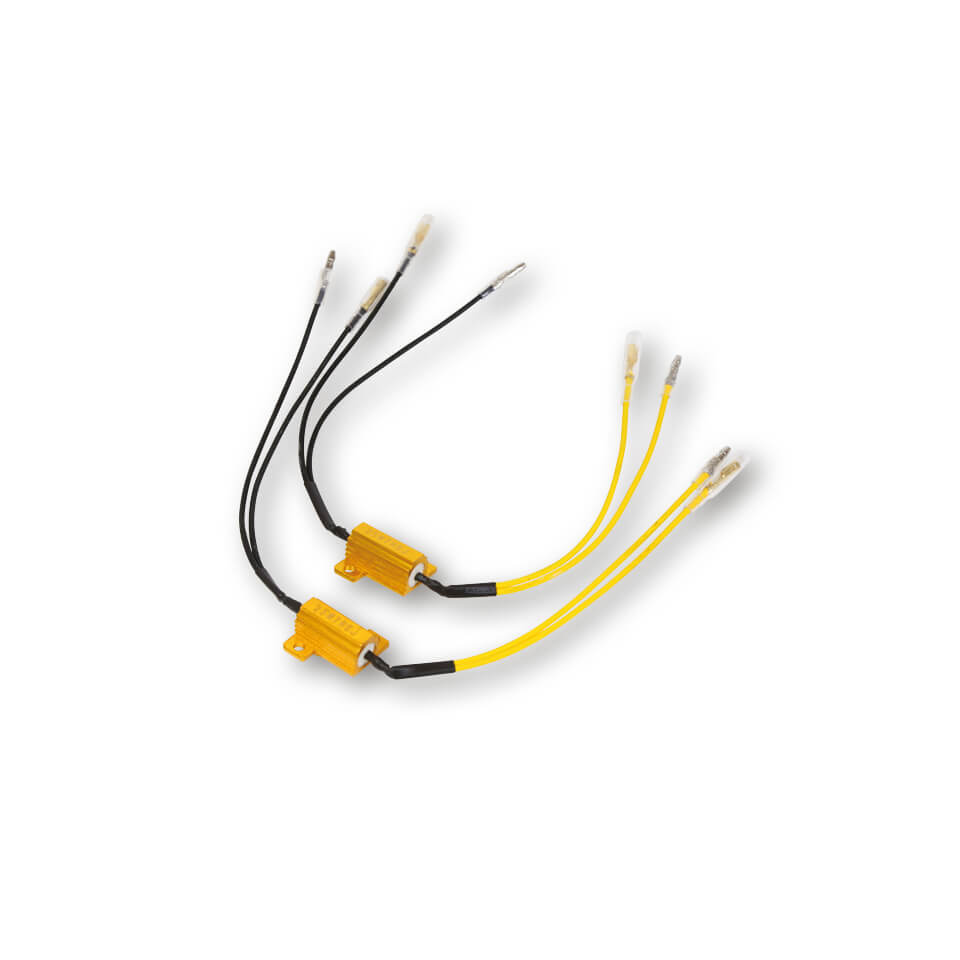

Power resistor 10 Ohm / 25 Watt
The flashing frequency changes automatically when the original flasher is converted to LED or halogen flasher. The parallel-connected power resistors provide a remedy. The correct selection of suitable resistors is listed in the table below. If you are not sure which resistance you need, please do not hesitate to contact us via the contact form (technical department) on our homepage.
For micro 1000 / Rhombus DF / DF Dark and a light indicator light 1 resistor á 33 Ohm for the rear light and 1 resistor á 7.5 Ohm for the brake light is required.
Required resistance for conversion to Kellermann flashers (per flasher)
21 Watt Power consumption of original flashers
micro 1000 Halogen - 10 Ohm Art. 123.950
micro 1000 / micro Rhombus (yellow, white, dark, DF, PL, Extreme) - 7.5 Ohm Art. 123.952
BL 1000 Halogen (yellow, white, SG) - no power resistor
BL 1000 LED (LED, dark, PL) - 7.5 Ohm Art. 123.952
Required resistor for conversion to Kellermann flashers (per side)
10 Watt Power consumption of original flashers
micro 1000 Halogen - 10 Ohm Art. 123.950
micro 1000 / micro Rhombus (yellow, white, dark, DF, PL, extremes) - 10 Ohm Art. 123.950
BL 1000 Halogen (yellow, white, SG) - no power resistor
BL 1000 LED (LED, dark, PL) - 10 Ohm Art. 123.950
The flashing frequency changes automatically when the original flasher is converted to LED or halogen flasher. The parallel-connected power resistors provide a remedy. The correct selection of suitable resistors is listed in the table below. If you are not sure which resistance you need, please do not hesitate to contact us via the contact form (technical department) on our homepage.
For micro 1000 / Rhombus DF / DF Dark and a light indicator light 1 resistor á 33 Ohm for the rear light and 1 resistor á 7.5 Ohm for the brake light is required.
Required resistance for conversion to Kellermann flashers (per flasher)
21 Watt Power consumption of original flashers
micro 1000 Halogen - 10 Ohm Art. 123.950
micro 1000 / micro Rhombus (yellow, white, dark, DF, PL, Extreme) - 7.5 Ohm Art. 123.952
BL 1000 Halogen (yellow, white, SG) - no power resistor
BL 1000 LED (LED, dark, PL) - 7.5 Ohm Art. 123.952
Required resistor for conversion to Kellermann flashers (per side)
10 Watt Power consumption of original flashers
micro 1000 Halogen - 10 Ohm Art. 123.950
micro 1000 / micro Rhombus (yellow, white, dark, DF, PL, extremes) - 10 Ohm Art. 123.950
BL 1000 Halogen (yellow, white, SG) - no power resistor
BL 1000 LED (LED, dark, PL) - 10 Ohm Art. 123.950
| Introducere montaj: | Descărcați |
| Execuție: | 10 Ohm |
|---|
