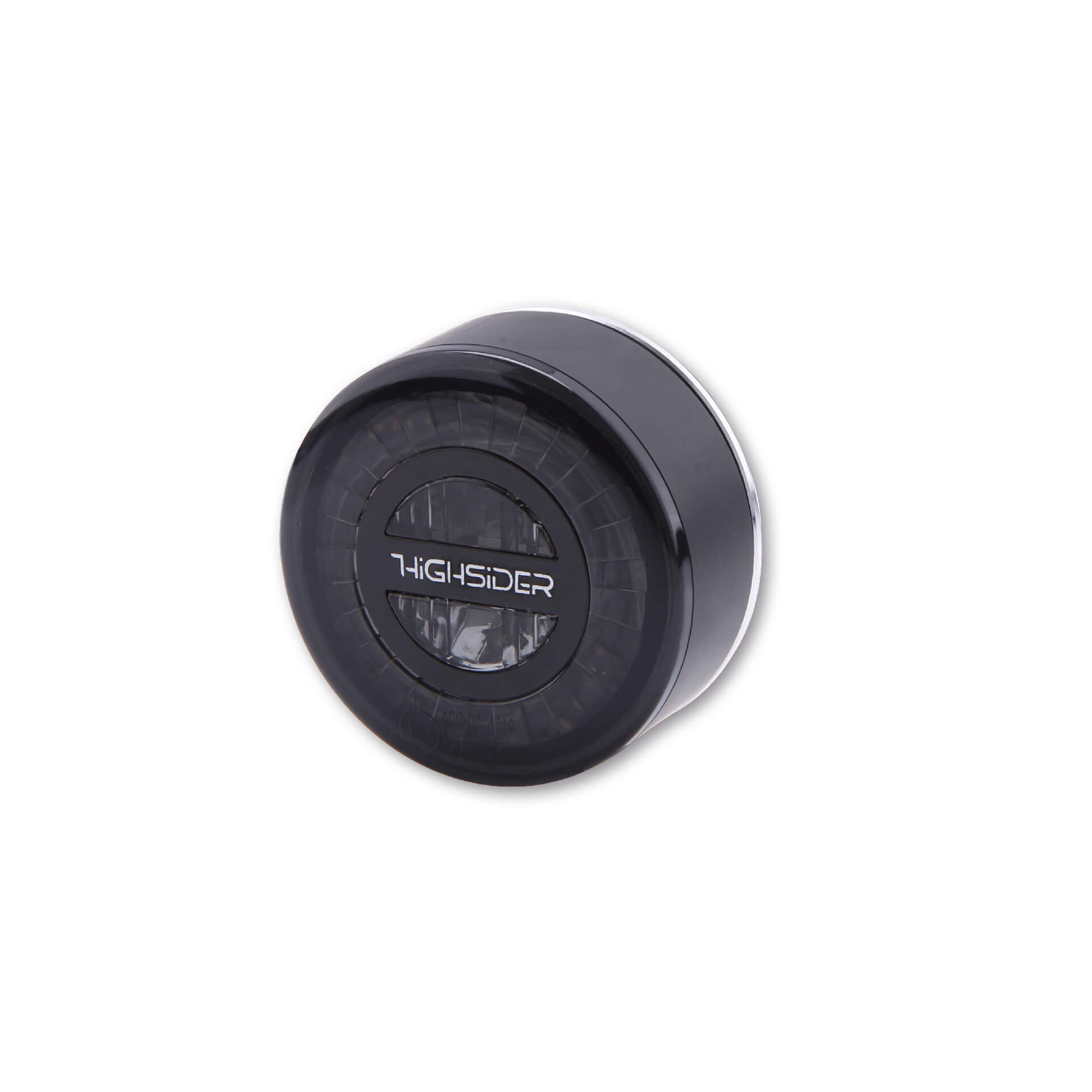

HIGHSIDER ROCKET MODUL LED tail light, brake light, turn signal

HIGHSIDER ROCKET MODUL 3in1 LED LED tail light, brake light, turn signal, for rear E-approved.
- Suitable for recessed or surface mounting - with black aluminium ring and tinted glass

Inspired by organic shapes, HIGHSIDER product development has designed a completely new housing shape without losing sight of the reference to the past. The slender, round forms support the classical associations evoked in the observer.

In the center are 6 very bright SMD LEDs installed. The outer ring consists of COBs (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life.
In addition, higher light values can be achieved than with conventional LEDs. This combination comes with a black anodized aluminum ring that fits over the base body.

Be seen with safety - the tail light and tail light/indicator series from HIGHSIDER give you the safety you need and the look you want - whether cruiser, sports bike or scooter.

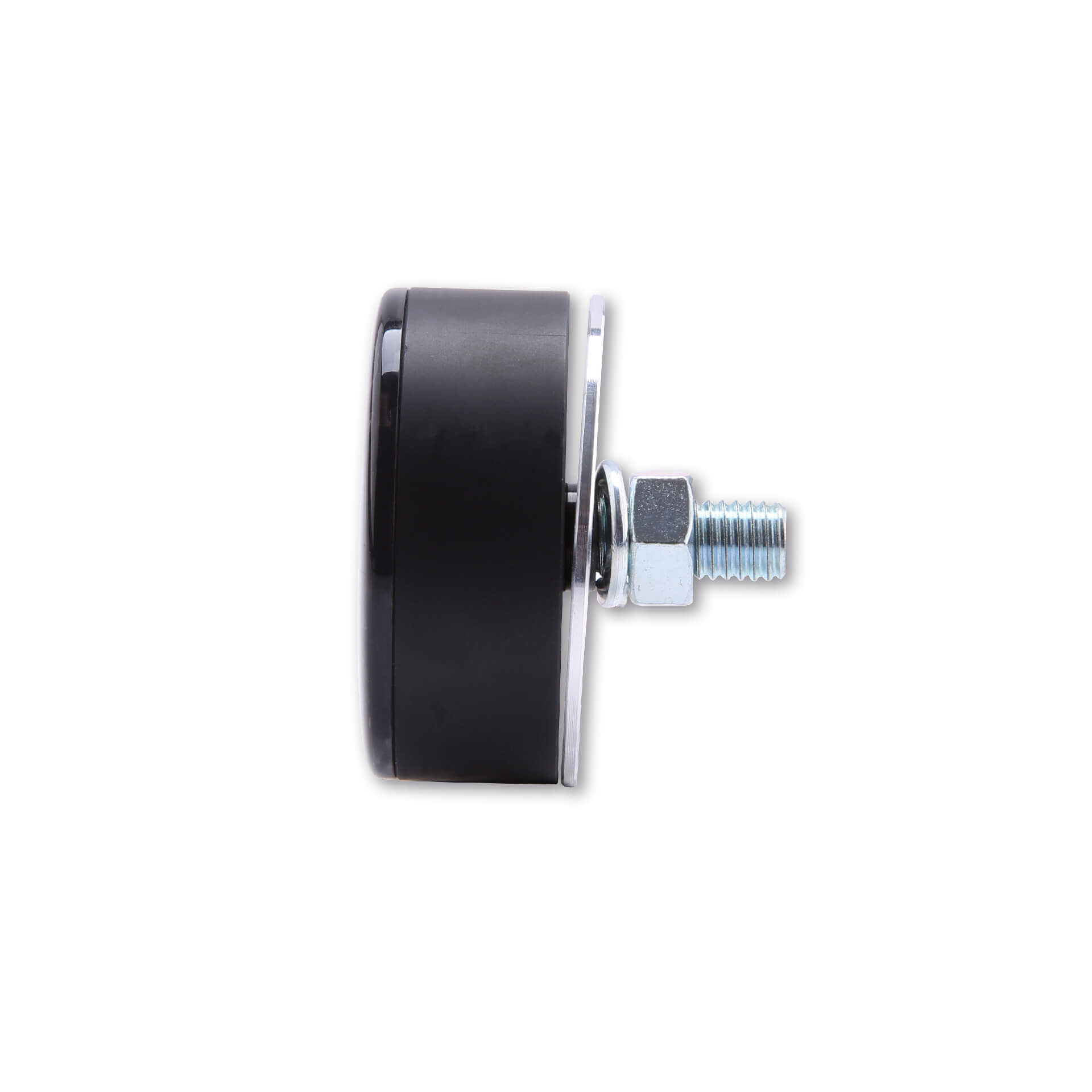

Dimensions
A: Depth: 14 mm
B: Diameter: 45 mm (with alloy ring)

Depth: 10 mm
Diameter: 40 mm (without alloy ring)
Mounting bolt: M8 x 1.25 mm x length 18 mm

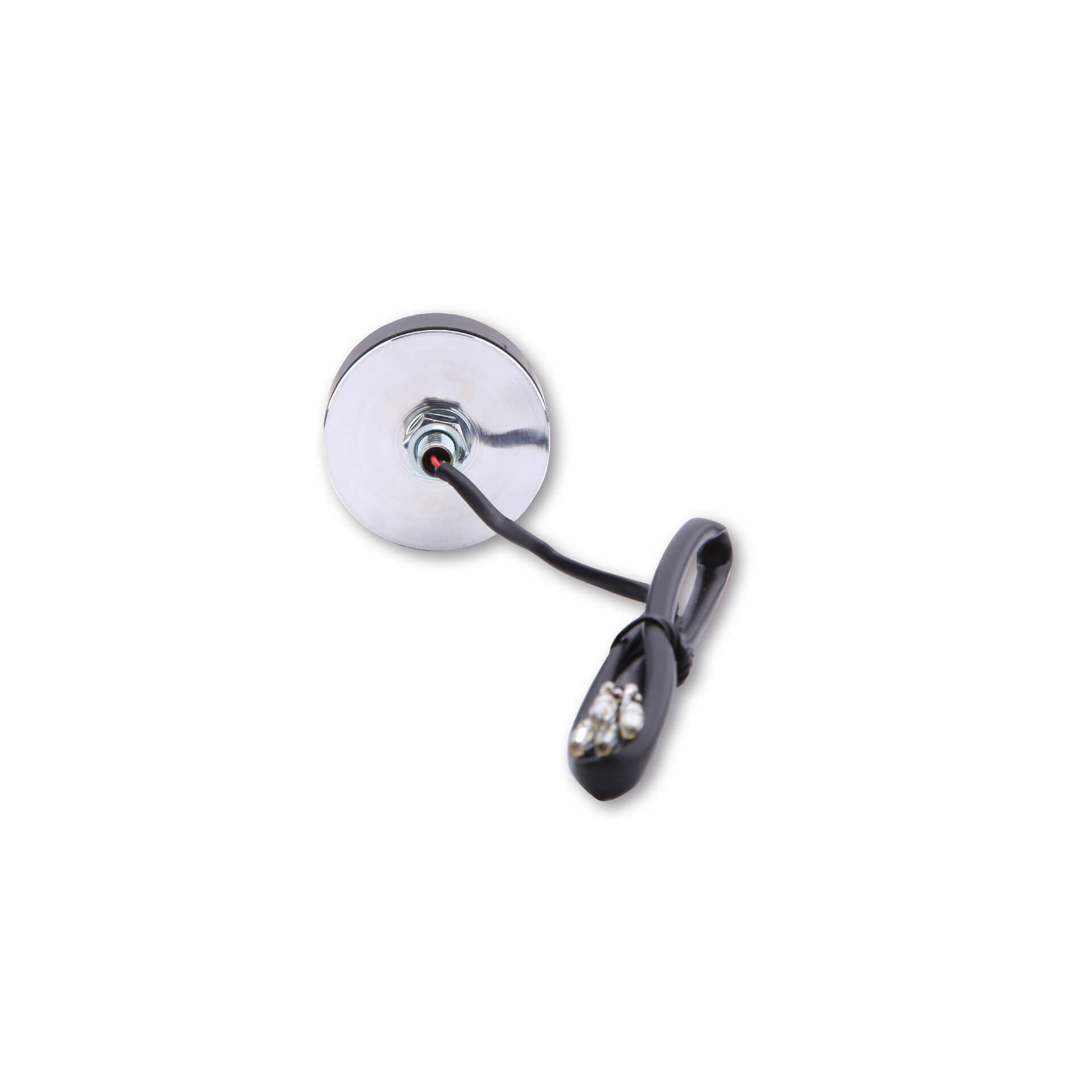

Connections:
Black cable = ground (-)
Yellow cable = tail light (+)
Red cable = brake light (+)
Blue = turn signal (+)

Scope of delivery: 1 pair

Note:
The combination can be installed flat without alu ring, so that only the lens is visible. For this purpose, a 40 mm wide hole must be drilled.
Alternatively, the combination is mounted with the aluminum ring on e.g. a retaining plate on the vehicle.
