HIGHSIDER LED rear light, brake light, turn signal COLORADO, installation
(55,87 €) 291,11 L
Produsul nu este disponibil momentan; vă vom informa prin e-mail.
Ne amintim de dumneavoastră
Vă rugăm să introduceți adresa dvs. de e-mail pentru a vă putea informa imediat ce articolul va fi din nou disponibil în mărimea dorită.
Descriere

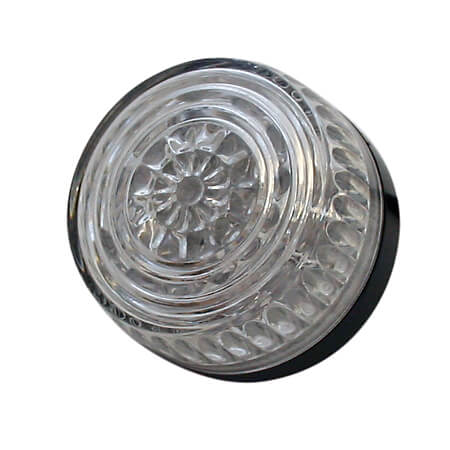

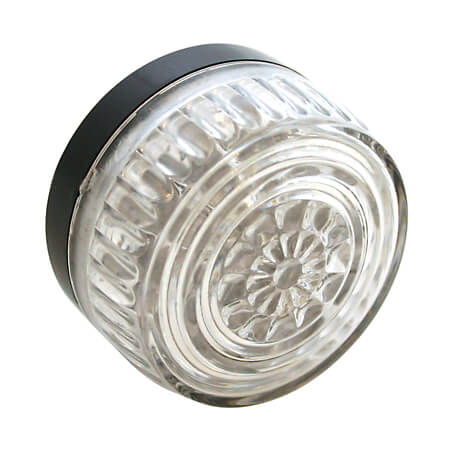

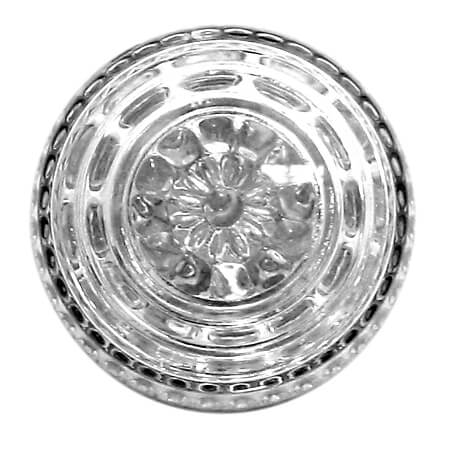

HIGHSIDER LED tail light, brake light, turn signal COLORADO
LED tail light, brake light, turn signal unit without aluminium housing, for rear mounting E-tested.
The HIGHSIDER taillight and taillight/indicator series are sure to be seen to give you the safety you need and the look you want whether you are a cruiser, scooter or speedster
Measurements:
A: 23.8 mm
B: 40 mm
Depth, Lens: approx. 17.5 mm
Connections:
Black cable = Ground (-) for turn signal and rear light
Blue cable= Turn signal (+)
Yellow cable = rear light (+)
Red cable = Brake light (+)
Scope of supply: 1 pair
Notes:
Application location: For rear only.
Fitting turn signal unit: Item no. 203-205.

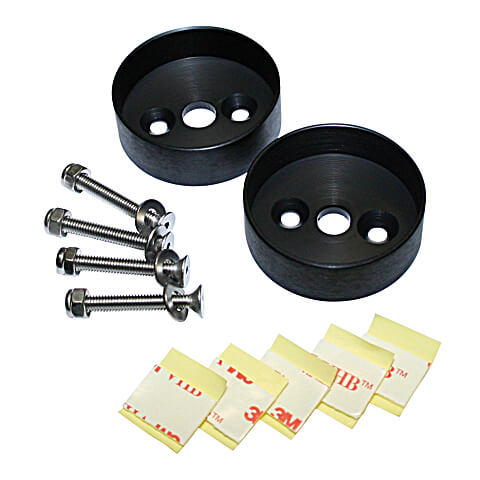

Fitting aluminium housing: Item no. 254-205G.
LED tail light, brake light, turn signal unit without aluminium housing, for rear mounting E-tested.
The HIGHSIDER taillight and taillight/indicator series are sure to be seen to give you the safety you need and the look you want whether you are a cruiser, scooter or speedster
Measurements:
A: 23.8 mm
B: 40 mm
Depth, Lens: approx. 17.5 mm
Connections:
Black cable = Ground (-) for turn signal and rear light
Blue cable= Turn signal (+)
Yellow cable = rear light (+)
Red cable = Brake light (+)
Scope of supply: 1 pair
Notes:
Application location: For rear only.
Fitting turn signal unit: Item no. 203-205.
Fitting aluminium housing: Item no. 254-205G.
| Introducere montaj: | Descărcați |
| Culoare: | negru |
|---|---|
| Diametru: | 40.00 |
| Sticlă: | Clar |
