HIGHSIDER APOLLO module LED indicators/position lights

HIGHSIDER APOLLO MODUL 2in1 LED turn signal/position light, E-approved for front

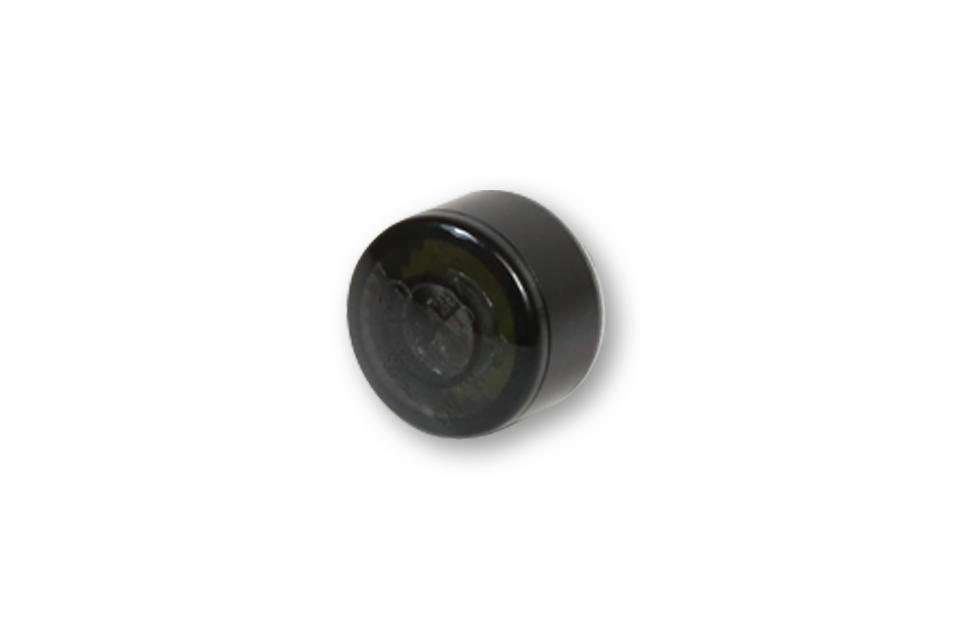

LED turn signal/position light module suitable for installation or surface mounting, black aluminium ring with tinted glass. With this innovative lighting technology, 2 very bright SMD LEDs are installed in the centre, enabling an extremely small design. The outer ring, on the other hand, consists of the new COB technology (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs. This module comes with a black anodized aluminum ring that fits over the base body.

In the right direction - with the innovative turn signal series from HIGHSIDER. Don't just show where you're going, show who you are. This is trend-setting design at its best.

Fit location: front

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm
Thread bolt M8, length: 12 mm

Connections:
Black wire = ground (-)
Yellow wire = turn signal (+)
White wire: Parking light (+)

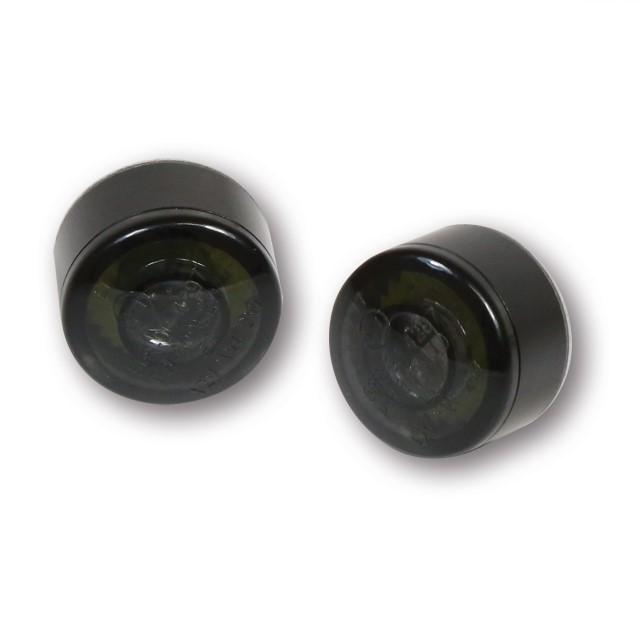

Scope of supply: 1 pair

Note:
The unit can be installed flat without an aluminium ring, so that only the lens is visible. A 20 mm hole must be drilled for this purpose.
Alternatively, the unit can be mounted with the aluminium ring on e.g. a retaining plate on the vehicle, see instructions.
