DENALI Universal Kit S4 DialDim

DENALI Universal Kit S4 consisting of:

• DENALI DialDim Lighting Controller (1x)
• DENALI S4 LED Additional Lighting 10W - By Unit (2x)

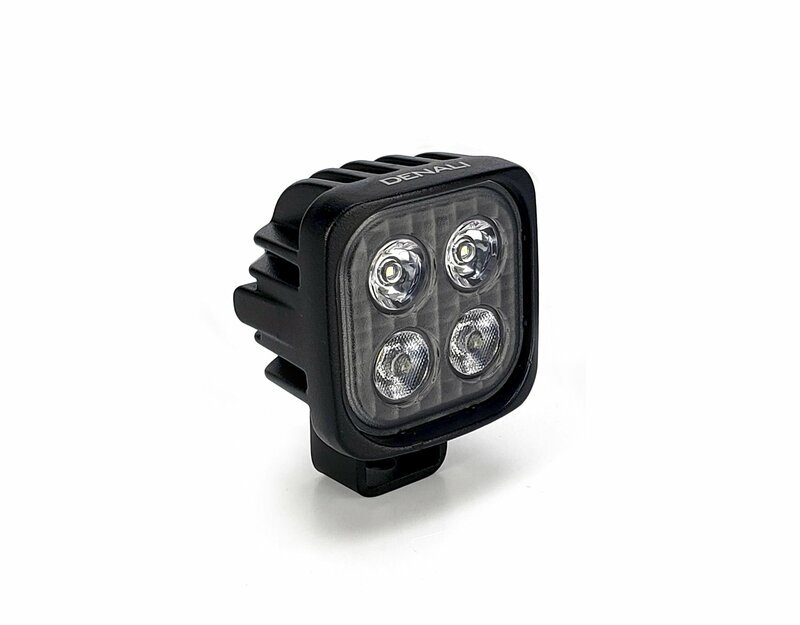

The S4 is the first light DENALI developed as part of the new S-Series product line. At more than 3000 lumens and economically priced, the S4 provides more light per dollar than just about anything else on the market. In fact, the S4 features the same high intensity LEDs as the D-Series lights, but utilize a single-piece optic and sealed beam construction to reduce the number of components. The DENALI S4's fixed lens features two flood optics and two spot optics to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing.

Features :

• High-Intensity Series Cree LEDs outputting 3066lumens per pod
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included

Specifications :

• Power Draw: 2,3 Amps
• Beam Distance: 115m
• Beam Width: 23m
• Raw Lumens: 3066
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes

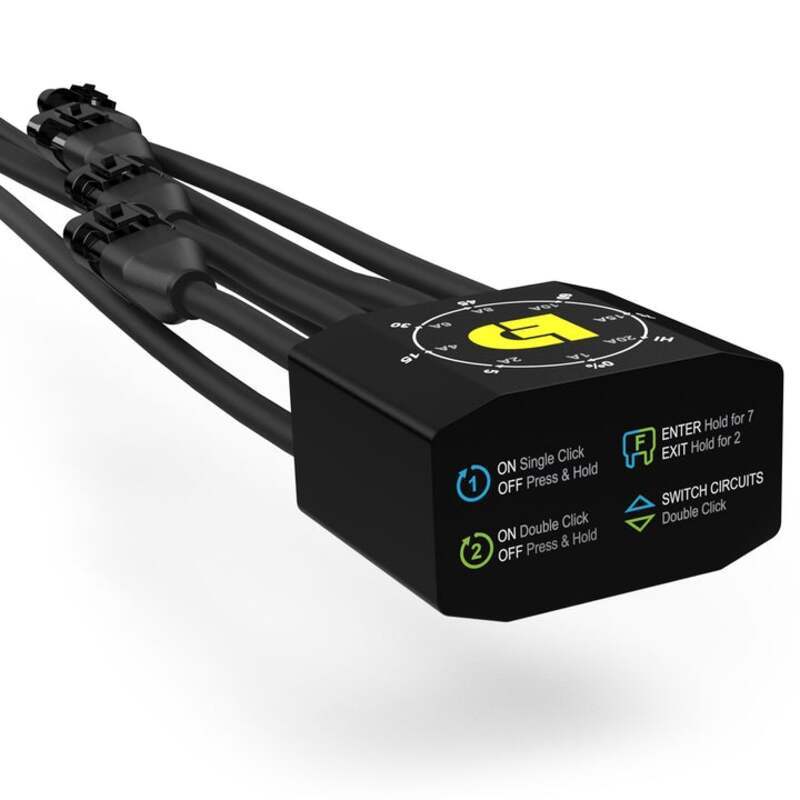

DialDim™ Lighting Controller

Allows to sell a complete solution with easy control of all light functions

• Independently turn on/off and dim two sets of auxiliary lights from a single switch
• LED halo switch displays your exact settings
• Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.


On/Off & Dim

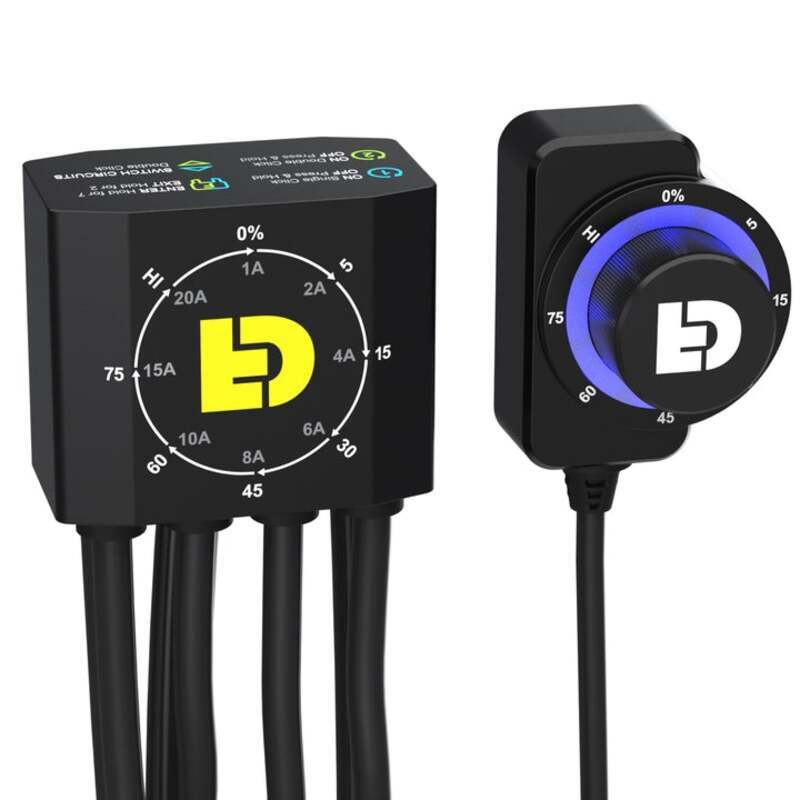

Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync

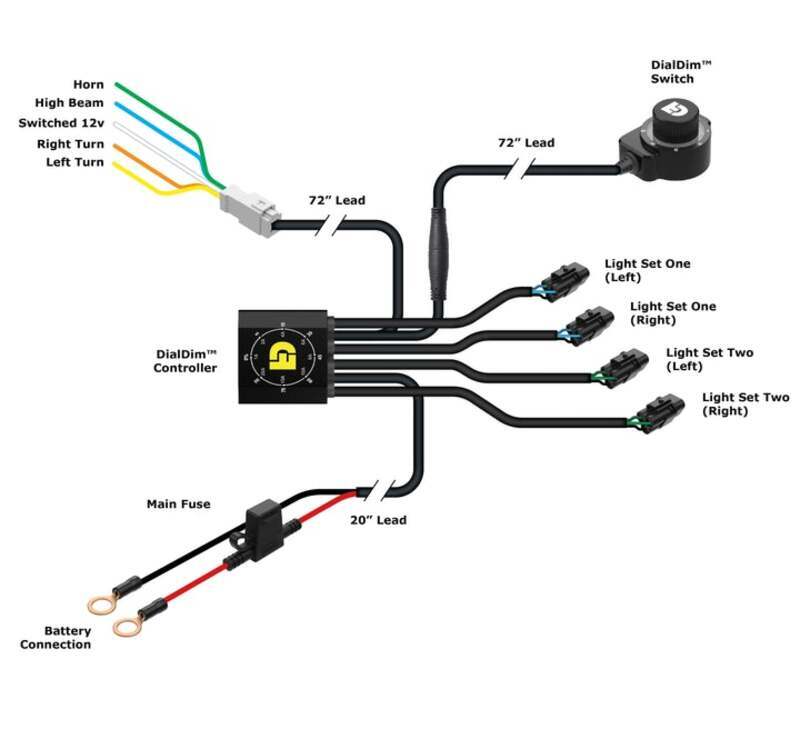

Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode
A clever 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal
When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal
When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn
When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits
Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator
Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff
If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

Product features

• Light type: LED
• Packing: 3 Stck.
• Color: Schwarz
• Width (mm): 70mm
• Length (mm): 86mm
• Homologation: Schweizer Zulassung, bitte beachten Sie die Asa 2b Richtlinien
• Position: vorne
• Material: Aluminium
• Range: S4
• Controller: DialDim
