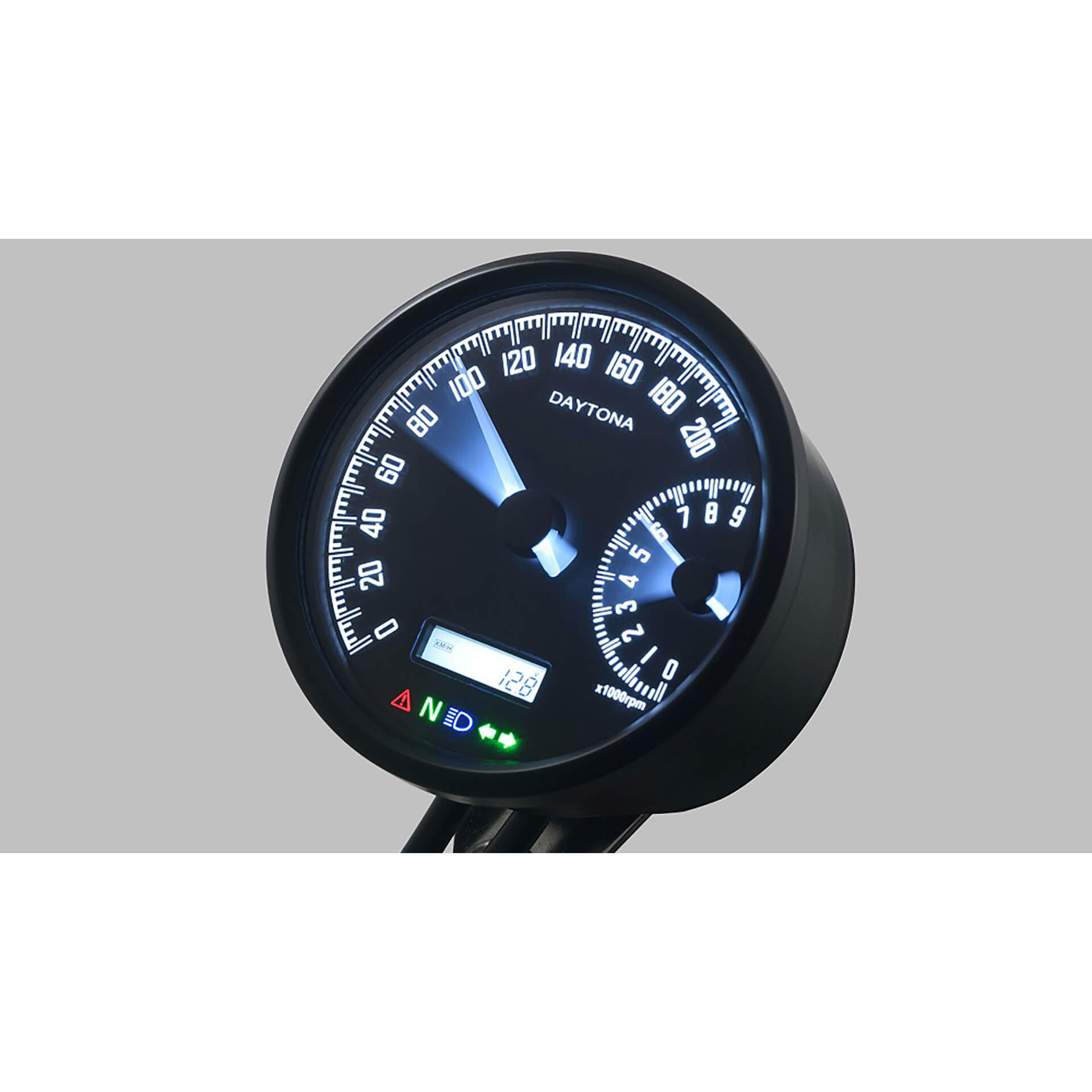

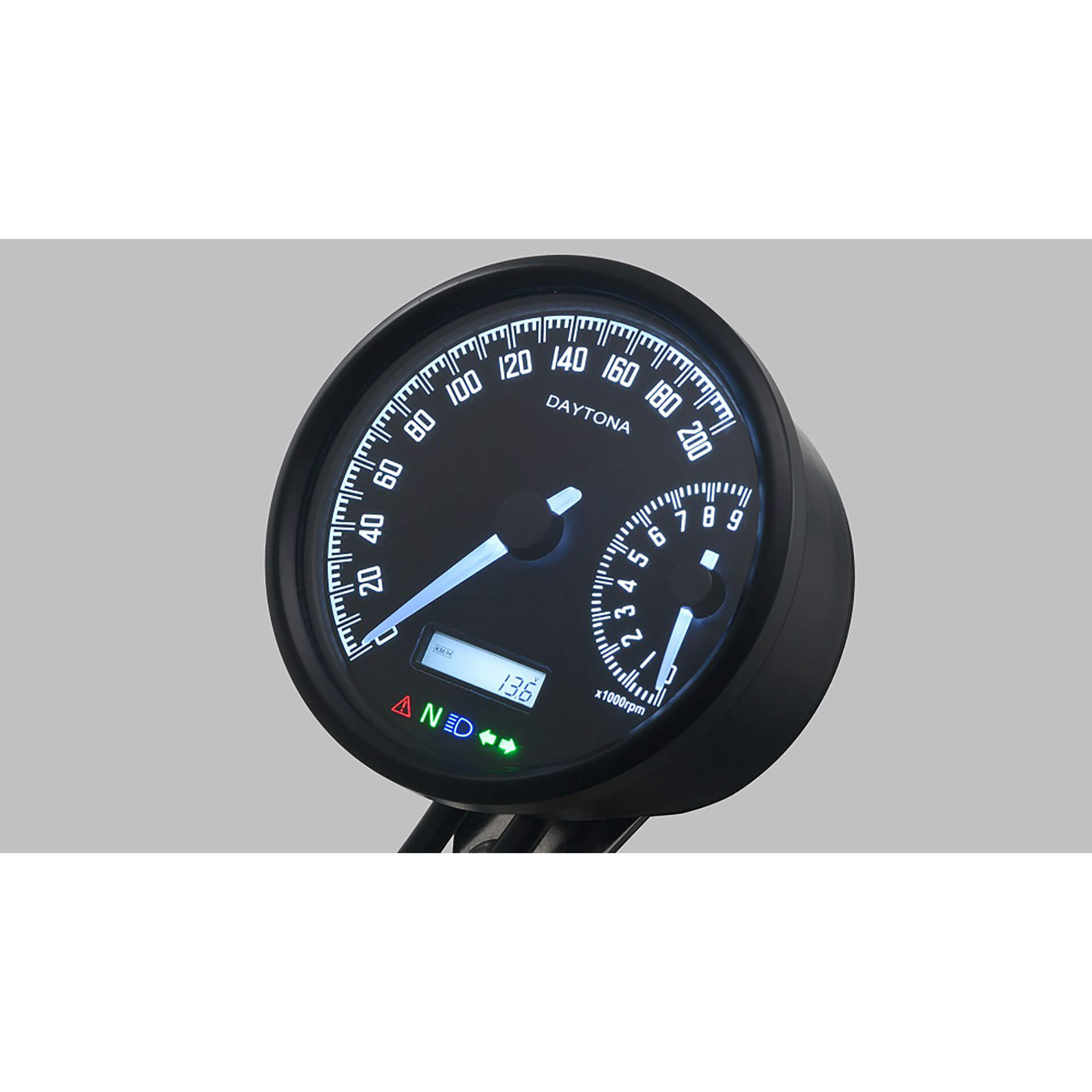

DAYTONA Corp. VELONA W, digital speedometer with rev counter and holder, Ø 80 mm

DAYTONA VELONA W, digital speedometer and rev counter, up to 200 km/h/9000 RPM, Ø 80 mm, black housing, round Ø 80 mm, white backlight, double needle, display: Ignition, neutral, high beam, indicators
Speed./volts/mileage/trip/revs, with holder.

The digital signal from the motorcycle is used. The signals from almost all common motorcycles can be converted.
If the motorcycle does not provide a digital signal, an active universal speed sensor or a speedometer cell adapter as well as an induction cable set for determining the speed can be ordered as an option.

Overview:
- Speed and rpm in one instrument
- For motorcycles with electronic sensor, the signal can be taken from the original pulse generator
- LCD display with many functions
- Display with stepper motor for quick display of the current speed or rpm
- Simple adjustment using two buttons on the back
(2-button remote control can be ordered as an option)
- Only suitable for 12V DC RPM
- Simple adjustment using two buttons on the back
(a 2-button remote control that can be mounted on the handlebars can be ordered as an option)
- Only suitable for 12V DC
- White backlighting
- Ø 80mm
- Matt black stainless steel housing
- Bracket included

Functions:
- Speedometer: 0-200 km/h(0-200 MPH) (analog display)
- RPM range: 0-9.000 rpm (analog display)
- Odometer: 0.0-99.999.9 km(mile)
- trip odometer: 0.0-99.999.9 km(mile)
- Voltmeter: 0.0-18.0 V
- V-Max. Storage
- rpm max. Storage
- LED for displaying the optimum switching point
- LEDs for indicators, high beam, idling and a warning LED that can be used for various functions
- Pulse rate adjustable 1P-1r/1P-2r/2P-1r/30P-1r
- Suitable for 12 V

Scope of delivery:
- Speedometer incl. bracket

- Active speed sensor universal
- Speedometer shaft adapter, item no. bracket

Optionally orderable:

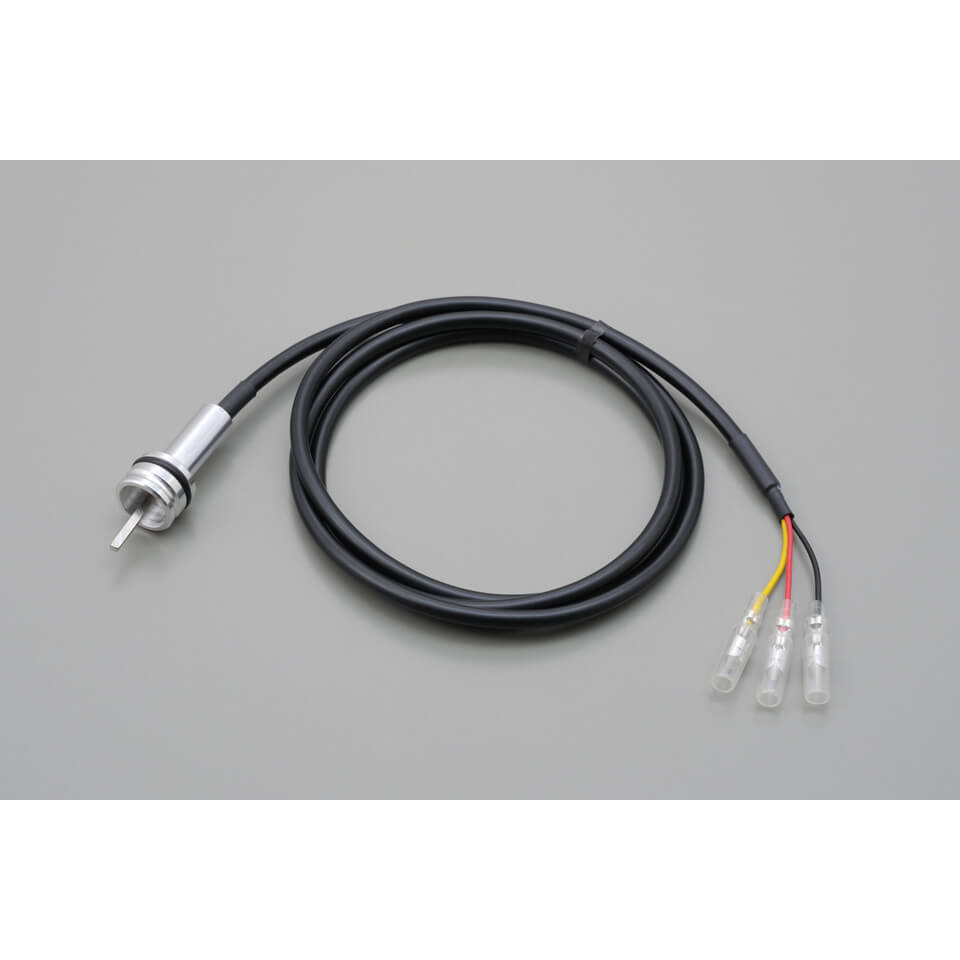

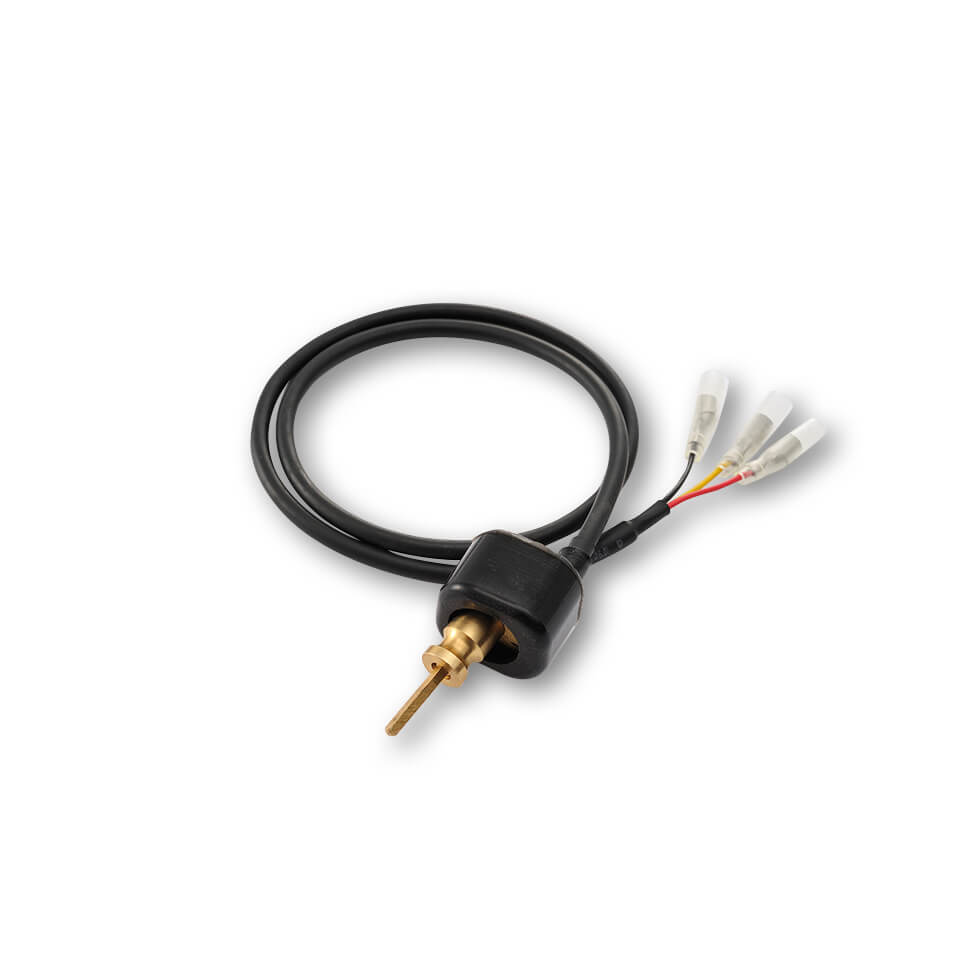

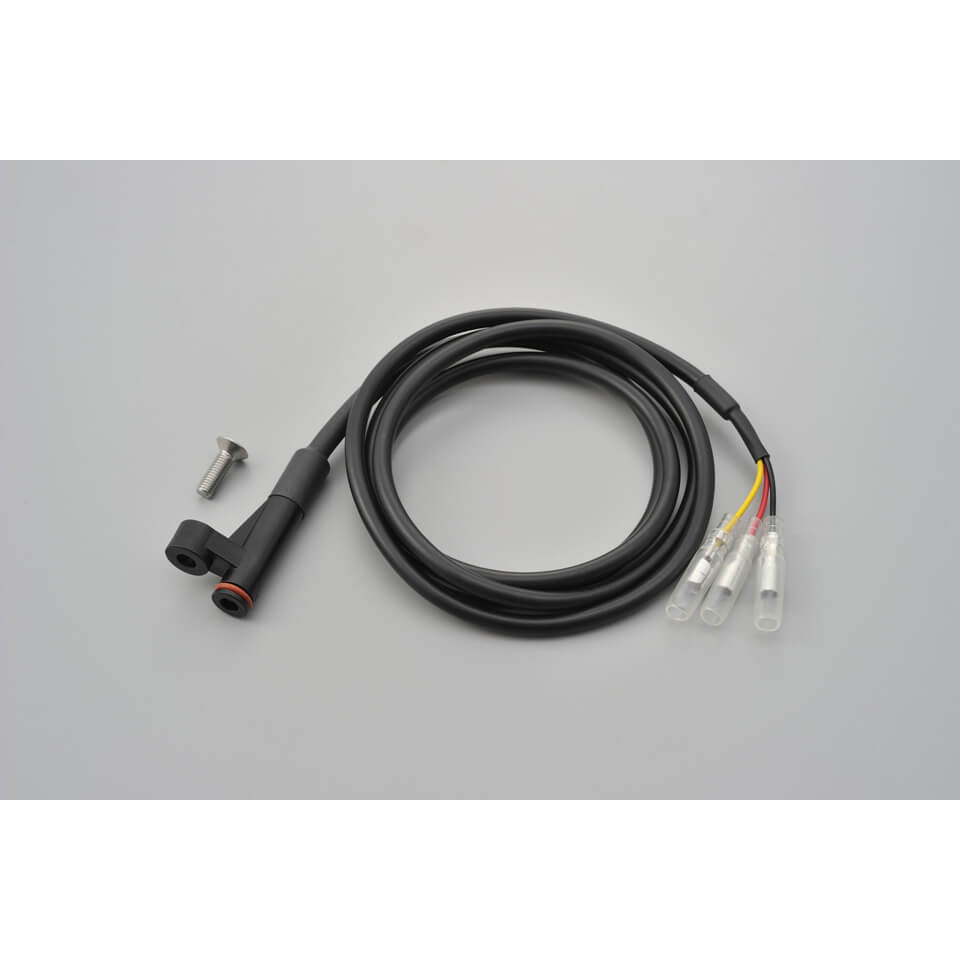

- Active speed sensor universal, item 361-555

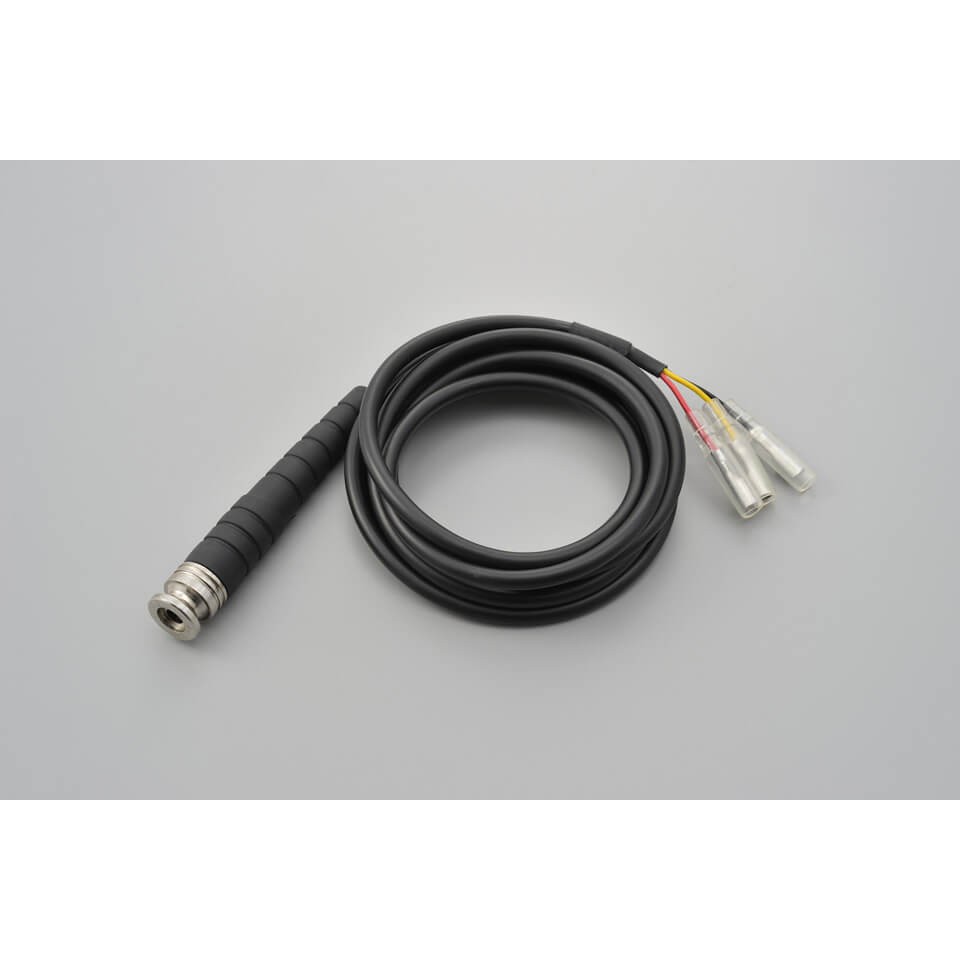

- Speedometer cable adapter, item 361-569
- For speed pick-up at the ignition coil or ignition cable, induction cable set, item 361-550
- 2-button remote control, item 240-065 (bw), 240-066 (cr)

Note:
A transfer or import of the original odometer reading is not possible. or importing the original mileage of the old speedometer is NOT possible!
